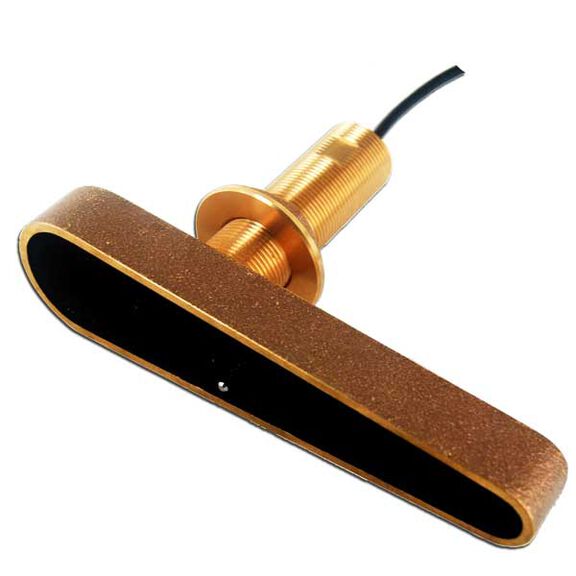

CPT120 Thru-Hull CHIRP Tranducer with High Speed Fairing Block
Complete Your Purchase
When paired with either the CP100 network sonar module or any DownVision capable Raymarine display, the CPT120 brings CHIRP DownVision™ to life.
This through-hull CHIRP transducer delivers a photo like view of the world beneath your boat with two independent sonar elements. The first is a high frequency range that allows you to image bottom structure with amazing detail, while the second is a lower frequency range that is optimized for imaging fish using high contrast sonar imagery.
Unlike conventional transducers that transmit a single frequency with each pulse, the CPT120 is a CHIRP DownVision™ transducer that transmits across a wide spectrum of sonar frequencies with each pulse – the result is much higher resolution, photo-like, sonar images. Compatible with Raymarine CP100, a68 and a78.
Specifications
- Style: Thru-hull
- Material: Bronze
- Frequency: CHIRP 170-230 and 320-380kHz
- Transmit Power: 300W
- Max. Depth: 600'
- Beamwidth: 25°/60° wide (port / starboard) and thin (fore / aft) fan beam
- Cable Length: 33' cable
- Hull Deadrise Angle: 0°-25°
