RVX1000 3D CHIRP Sonar Module
Model #
19211457
Mfg #
E70511
$1,199.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

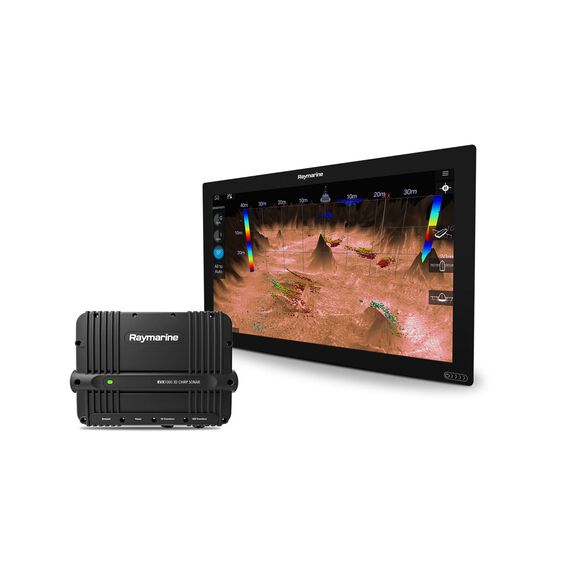

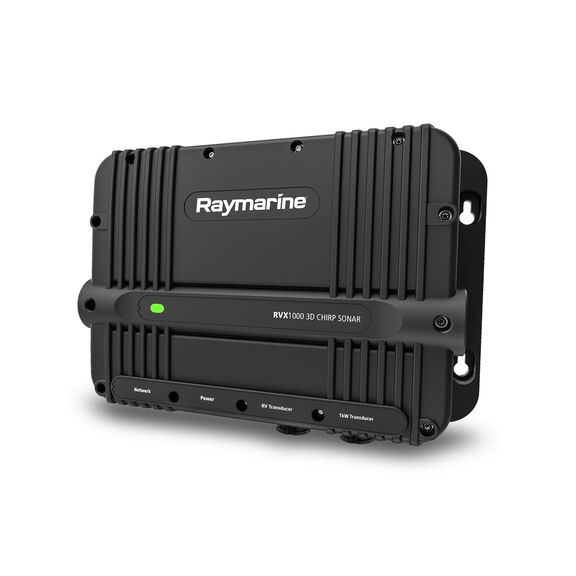

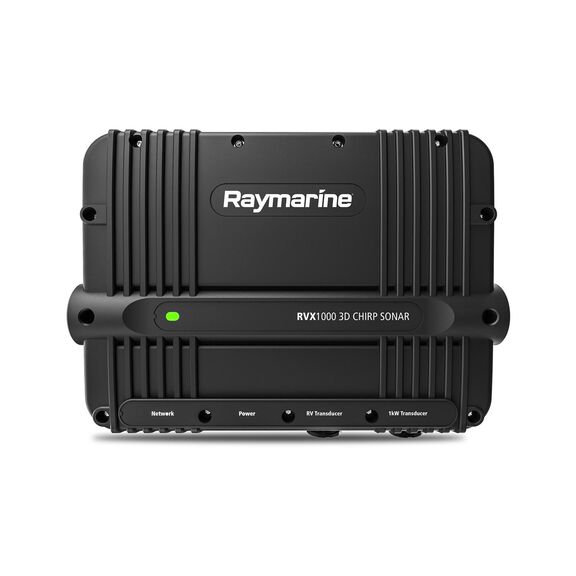

The RVX1000 3D CHIRP Sonar Module offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine's award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.
Key Features:
- 5-channel sonar with RealVision 3D, CHIRP Down and SideVision, high-frequency CHIRP and high-power 1kW CHIRP Sonar
- RealVision 3D with GPS Track
- Sonar Scroll Back – Rewind, pause, and playback recorded sonar history
- Raymarine's TrueZoom™ magnification technology
- RealVision 3D gyro stabilization compensates for boat movement, delivering life-like 3D imagery
- Dual transducer connections supporting both RealVision 3D and Airmar CHIRP 1kW transducers
- Fast quad core processor delivers stunning 3D sonar imagery alongside CHIRP, DownVision and SideVision sonar channels without any lag or delay.
Transducer Options
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type: AXIOM RealVision | Reading(s) | Transmit Power | Material | Max. Depth | Model |
|---|---|---|---|---|---|
| RV-100 All-In-One Transom Mount Transducer (Primary) | 3D CHIRP DownView SideView |
N/A | Plastic | 900' CHIRP 300' 3D 300' DV 300' SV |
18219261 |
| RV-200 Bronze All-In-One Thru-Hull Transducer | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219279 |
| RV-212 Bronze Thru-Hull Transducer Pack | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219287 |
| Individual RealVision 3D™ Thru-Hull Transducer, Port | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219295 |
| Individual RealVision 3D™ Thru-Hull Transducer, Starboard | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219303 |
| RV-220 Bronze Thru-Hull Transducer Pack | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219311 |
| RealVision 3D™ 20° Thru-Hull Transducer, Port | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219329 |
| Individual RealVision 3D™ Thru-Hull Transducer, Starboard | 3D CHIRP DownView SideView |
N/A | Bronze | 900' CHIRP 300' 3D 300' DV 300' SV |
18219337 |
| RV-300 Plastic All-In-One Thru-Hull Transducer with 0° Deadrise | 3D CHIRP DownView SideView |
N/A | Plastic/Stainless Steel | 900' CHIRP 300' 3D 300' DV 300' SV |
18219345 |
| Individual RealVision 3D™ Thru-Hull Transducer with 12° Deadrise, Port | 3D CHIRP DownView SideView |
N/A | Plastic/Stainless Steel | 900' CHIRP 300' 3D 300' DV 300' SV |
18219360 |
| Individual RealVision 3D™ Thru-Hull Transducer with 12° Deadrise, Starboard | 3D CHIRP DownView SideView |
N/A | Plastic/Stainless Steel | 900' CHIRP 300' 3D 300' DV 300' SV |
18219378 |
| Individual RealVision 3D™ Thru-Hull Transducer with 20° Deadrise, Port | 3D CHIRP DownView SideView |
N/A | Plastic/Stainless Steel | 900' CHIRP 300' 3D 300' DV 300' SV |
18219394 |
| Transducer Type | Reading(s) | Material | Power | Max Depth | Model |
|---|---|---|---|---|---|
| B265 LH Thru-Hull Transducer | Depth/Temp | Bronze | 1kW | 1,500' | 14395552 |
| B75 LH Thru-Hull 0º Tilt Transducer (Pair) | Depth/Temp | Bronze | 600W | 1,000' | 14395594 |
| B75 LH Thru-Hull 12º Tilt Transducer (Pair) | Depth/Temp | Bronze | 600W | 10,000' | 14395602 |
| Airmar B175LH Low/High CHIRP 12° Tilt Bronze Thru-Hull Transducer | Depth/Temp | Bronze | 1kW | 10,000' | 14395636 |
| Airmar B175LH Low/High CHIRP 20° Tilt Bronze Thru-Hull Transducer Pair | Depth/Temp | Bronze | 1kW | 10,000' | 14395644 |
| TM265LH Transom Mount CHIRP Transducer | Depth/Temp | Plastic | 1kW | 10,000' | 13217369 |
| TM265 LM Transom Mount Transducer | Depth/Temp | Plastic | 1kW | 10,000' | 14395586 |
| M265LH In-Hull Transducer | Depth | Urethane | 1kW | 10,000' | 14395560 |
| M265LM In-Hull Transducer | Depth | Urethane | 1kW | 10,000' | 14395578 |
| R109LH-W Urethane Thru-Hull CHIRP Wide Beam 2kW Transducer | Depth | Urethane | 2kW | 6,000' | 17834532 |
| TM275LH-W Urethane Transom Mount CHIRP Wide Beam 1kW Transducer | Depth/Temp | Urethane | 1kW | 3,000' | 17834482 |
| B275LH-W BronzeThru-Hull CHIRP Wide Beam 1kW Transducer | Depth/Temp | Bronze | 1kW | 3,000' | 17834524 |
| R509LH-W Thru-Hull CHIRP Wide Beam 3kW Transducer | Depth/Temp | Urethane | 3kW | 10,000' | 17834540 |
| PM275LH-W Bronze In-Hull CHIRP Wide Beam 1kW Transducer | Depth | Urethane | 1kW | 3,000' | 17834557 |
| PM111LH-W Urethane In-Hull CHIRP Wide Beam 2kW | Depth | Urethane | 2kW | 6,000' | 17834565 |
| R111LH Urethane In-Hull CHIRP 2kW Transducer | Depth | Urethane | 1kW | 6,000' | 17834573 |
| R111LM Urethane In-Hull CHIRP 2kW Transducer | Depth | Urethane | 2kW | 6,000' | 17834581 |
| R599LH Urethane In-Hull CHIRP 3kW Transducer | Depth | Urethane | 3kW | 10,000' | 17834599 |
| R599LM Urethane In-Hull CHIRP 3kW Transducer | Depth | Urethane | 3kW | 10,000' | 17834607 |
| B75LM Bronze Thru-Hull CHIRP Transducer Pair 0 Degree | Depth/Temp | Bronze | 600W | 900' | 17834664 |
| B75MH Bronze Thru-Hull CHIRP Transducer Pair 0 Degree | Depth/Temp | Bronze | 600W | 900' | 17834672 |
| B75LM Bronze Thru-Hull CHIRP Transducer Pair 12 Degree | Depth/Temp | Bronze | 600W | 900' | 17834680 |
| B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 0 Degree Pair | Depth/Temp | Bronze | 1kW | 2,500' | 17834763 |
| B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 0 Degree Pair | Depth/Temp | Bronze | 1kW | 1,500' | 17834771 |
| B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 12 Degree Pair | Depth/Temp | Bronze | 1kW | 2,500' | 17834789 |
| B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 12 Degree Pair | Depth/Temp | Bronze | 1kW | 1,500' | 17834797 |
| B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 20 Degree Pair | Depth/Temp | Bronze | 1kW | 2,500' | 17834805 |
| B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 20 Degree Pair | Depth/Temp | Bronze | 1kW | 1,500' | 17834813 |
| R109LH Urethane Thru-Hull CHIRP 2kW Transducer | Depth/Temp | Urethane | 2kW | 6,000' | 17834821 |
| R109LM Urethane Thru-Hull CHIRP 2kW Transducer | Depth/Temp | Urethane | 2kW | 6,000' | 17834839 |
| R109LM Urethane Thru-Hull CHIRP 2kW Transducer | Depth/Temp | Urethane | 3kW | 10,000' | 17834847 |
Amperage
2.4 Amps Peak; 1.2 Amps RMS
Dimensions
11.8" x 7.4" x 3.3"
Maximum Depth
5000 Feet
Mount Type
Surface
Sonar
1kW CHIRP
,
RealVision 3D
,
CHIRP DownVision
,
CHIRP SideVision
,
High Frequency CHIRP
Specific Transducer
Transducer not Included
Warranty
Three Years (With Product Registration)
Waterproof
IPX6/IPX7
