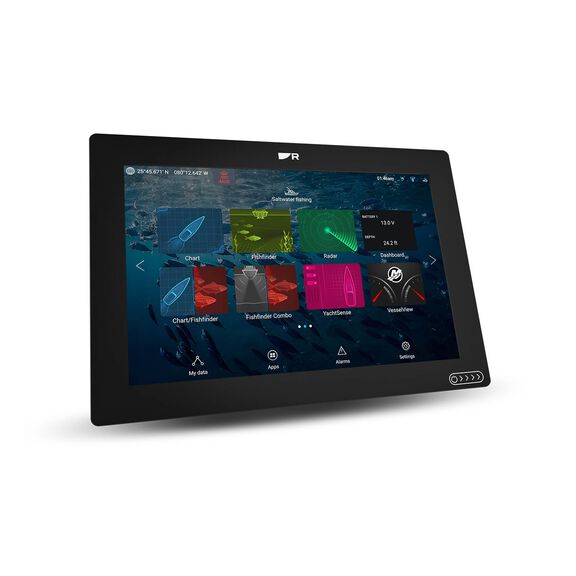

Axiom+ 12 RV Multifunction Display with LightHouse Charts and Quantum Radar Bundle

The performance-tuned Axiom® Plus is a new generation of award-winning Raymarine multifunction displays.

Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar. New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

PERFORMANCE TUNED

Designed for speed, responsiveness, and future expansion.

• Powerful quad-core processor, plus increased onboard storage for personal data and apps
• Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP
• ClearCruise™ Augmented Reality-capable for smarter navigation decisions
• Smart and intuitive LightHouse 3 OS makes navigating easy

MAXIMUM VISIBILITY

Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.

• IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays
• The all-weather display is 25 percent brighter (up to 1,800 nits)
• HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls

SIMPLY POWERFUL

Better chart plotting, enhanced GPS, and 3D sonar.

• Available with built-in RealVision 3D sonar for the most comprehensive view of the underwater world
• Ready-to-explore with new Raymarine LightHouse Charts, featuring dynamic viewing options, premium points of interest, and detailed satellite imagery
• Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning
• Ready to expand and network with multiple Axiom displays, radars, sonar, and more

Raymarine Quantum Radar is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.

The New Standard in Compact Radar

Next Generation CHIRP Pulse Compression Radar Imaging

• Offshore or within a few yards, Quantum’s CHIRP pulse compression radar technology delivers sharper targets with reduced clutter
• CHIRP Pulse compression technology ensures more energy reaches each target, resulting in superior imaging on long ranges
• Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range (80% improvement over magnetron radars)
• Immediate awareness – Quantum starts up and is ready to go in seconds
• Superior interference rejection eliminates noise from other radars

Simplified Installation

Wi-Fi or thin wire network connectivity

• Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
• Quantum’s small diameter power cable is easy to route through tight spaces
• Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design

50% lighter, safe emissions, and low power consumption

• Weighs 50% less than traditional magnetron radars
• Safe Emissions thanks to Quantum’s low power solid state transmitter
• Very low power consumption (17 Watts transmit and 7 watts standby)
• Extended vessel battery life when under sail

Features:

• HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better
• Powerful quad-core processor
• Built-in High CHIRP DownVision, SideVision and 3D sonar
• Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
• Simplified installation and can utilize existing cables (with an adapter) if being used as an upgrade
• Includes 10m power cable and Data cables
