Cyclone 55 Watt Radar with 3 ft. Array
Complete Your Purchase
55 Watt open array with CHIRP Pulse Compression technology with 3 ft. The 55 watt solid-state radar is equivalent to a 6 kW magnetron radar, with range performance up to 72 NM.
With a 55-watt solid-state transmitter, Cyclone delivers excellent target separation and long-range resolution using CHIRP pulse compression and beam sharpening technology. The power output of Cyclone is equivalent to a 6kW magnetron radar and gives Cyclone a range of up to 72 nautical miles.
Cyclone radars feature innovative detection capabilities, including Doppler target tracking, RangeFusion™ technology, Bird Mode, and high-speed 60 rpm imaging.
Features:
- Doppler Target Tracking
- RangeFusion™ technology combines short and long pulses into the single high clarity radar image, delivering exceptional short-range and long-range targets simultaneously

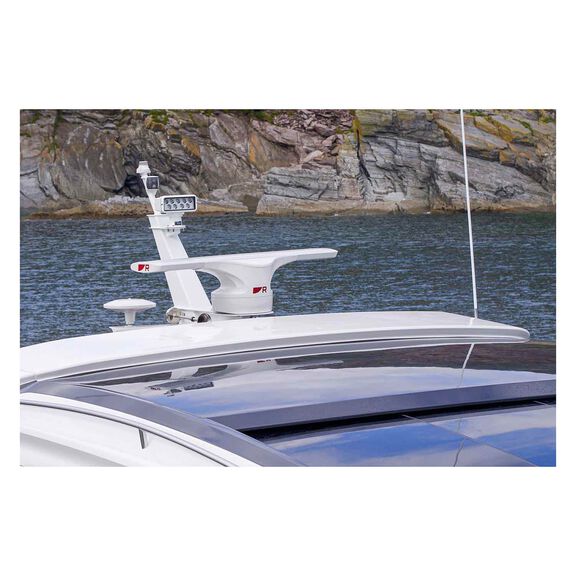

- At 13.1 inches (335 mm) tall, Cyclone’s lower profile allows greater flexibility of boat architecture and more adaptable installation options
- Innovative pedestal design conceals cable connections for a cleaner installation. Built in cable gland to allow sleeker design configuration to boat designers
- Engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
In the Box:
- Cyclone pedestal
- 3-ft array
- 15m power cable
- 15m data cable
- VCM100
