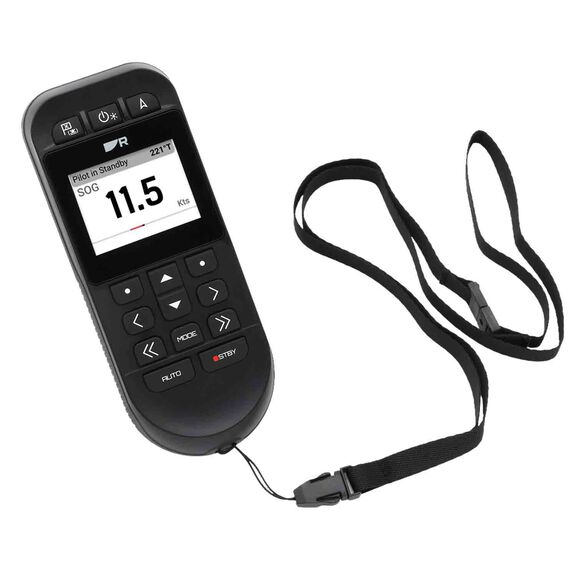

RCU-1 Wireless Autopilot Remote

The Raymarine RCU-1 Autopilot Remote puts complete steering control in your palm. Designed exclusively for Raymarine Evolution autopilots, the RCU-1 works with both sailing and powerboats and connects wirelessly to your vessel’s NMEA 2000 / SeaTalk NG network via the WG-1 Bluetooth gateway. With intuitive modes like Point-and-Go and Solo Sailor safety features, the RCU-1 makes navigation smarter, safer, and more convenient. Compact, rugged, and easy to use, it’s the ultimate companion for hands-on pilot control anywhere onboard.

The WG-1 gateway is required for all RCU-1 installations. The Starter Kit includes the WG-1 for a new installation. Remote Only adds an RCU-1 to a system that already has a WG-1, which supports up to 3 RCU-1 remotes at once.

Key Features

• Wireless Autopilot Control: Engage, adjust, or disengage the autopilot from anywhere onboard using the dedicated keypad
• Point-and-Go: Aim the remote in the direction you want to travel and the autopilot follows that heading for quick course changes
• Solo Sailor Mode: Automatically turns the boat into the wind when a wear-overboard situation is detected
• Live Navigation Data: View heading, speed, depth, wind, and waypoint data from NMEA 2000 and SeaTalk NG networks on a bright, sunlight-viewable color display
• Wireless Range: Bluetooth 5.1 connection up to 30 m (98 ft.) from the WG-1 with clear line of sight
• WG-1 Gateway: Connects to the network with a standard NMEA 2000 DeviceNet connector and supports up to 3 RCU-1 remotes simultaneously
• Long Battery Life: Up to 30 days of continuous use on 2 AA batteries; alkaline, lithium, or rechargeable NiMH/NiCd (charged externally)
• Built for the Marine Environment: Rugged, IP67 waterproof design with ergonomic one-handed operation; operating temperature -13°F to 131°F (-25°C to 55°C)
• Compact Handset: 5.94" H x 2.36" W x 1.24" D; weighs 6.70 oz. with batteries
• Compatibility: Raymarine Evolution autopilots only; not compatible with SPX, X-Series, or older SeaTalk1 autopilots

What's Included

• RCU-1 Autopilot Remote Control

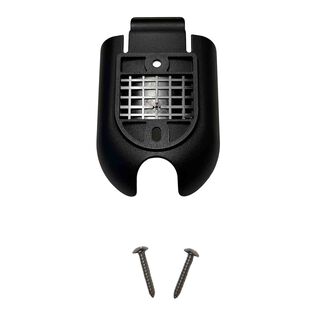

• Cradle
• Lanyard
• 2 x AA batteries
• 2 x self-tapping screws
• Documentation pack
• WG-1 Wireless Gateway with 1 m SeaTalk NG to DeviceNet adapter cable (Starter Kit only)
