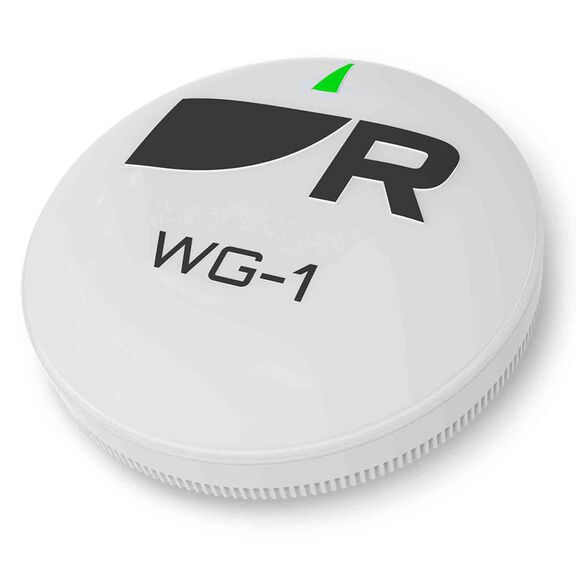

WG-1 Wireless Gateway for RCU-1 Remote
Complete Your Purchase
Add a wireless link to your Raymarine Evolution autopilot with the Raymarine WG-1 Wireless Gateway. This compact Bluetooth gateway connects to your SeaTalkNG or NMEA 2000 backbone and is required for every RCU-1 Wireless Autopilot Remote installation, putting handheld autopilot control in your hand from up to 98 feet away with clear line of sight. Engage, adjust, or check your heading from the bow, the cockpit, or while tending lines, whether it's a quick evening cruise or a long coastal run. One gateway supports up to three RCU-1 remotes at once, so more than one crew member can stay in command. The WG-1 uses a standard NMEA 2000 DeviceNet connector, includes a 1 m SeaTalkNG-to-DeviceNet adapter cable, draws power directly from the network, and carries IPX6 and IPX7 water protection. Please note it works only with Evolution autopilots and is not compatible with SPX, X-Series, or older SeaTalk-1 systems.
Key Features
- Bluetooth 5.1 Connectivity: Wireless range up to 98.4 ft (30 m) with clear line of sight
- Network Compatible: Standard NMEA 2000 DeviceNet connector with included 1 m SeaTalkNG to DeviceNet adapter cable
- Evolution Autopilot Control: Required for all RCU-1 remote installations with Raymarine Evolution autopilots
- Multi-Remote Support: Connects up to three RCU-1 remotes simultaneously
- Network Powered: 12V DC nominal supply from the SeaTalkNG network, 9 to 16V DC operating range, 30 mA max draw, LEN 1
- Weather Ready: IPx6 and IPx7 water ingress protection, operates from -13°F to 131°F
- Compact Size: 1.05 in. H x 4.27 in. W and weighs just 4.55 oz
- Compatibility Note: Not compatible with SPX, X-Series, or SeaTalk-1 autopilots
