Dolphin PRO EVO3 Series Battery Charger, 12V, 90 Amp
Complete Your Purchase

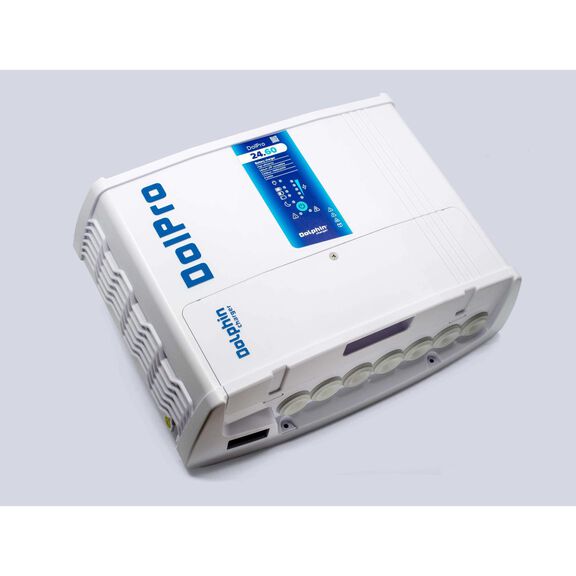

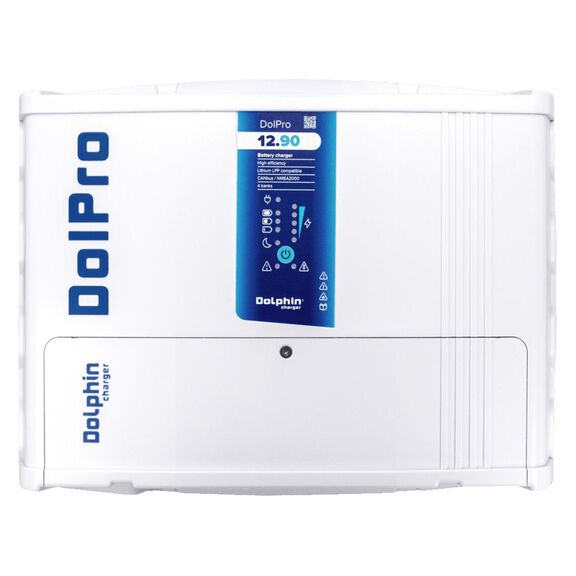

SCANDVIK Dolphin PRO EVO3 Series Battery Charger
Scandvik is proud to introduce the Dolphin PRO Evo3. This new range of Marine Battery Chargers is the result of the latest technological advancements in the world of power electronics. By comparison to the Dolphin Pro Chargers, an additional DC output has been added while reducing the overall dimensions by 16% (12v/90a, 24v/40a, 24v/60a) and 30% (24v/100a).
Not only are they more compact but also 30-60% lighter (9 lbs.) offering the highest power to space ratio on the market! With 4 independent isolated DC outputs and NMEA 2000 communication the Dolphin PRO Evo3 meets the demands of today’s leading boat builders and modern electrical systems.
Key Features
-
Ultra-compact and lightweight
Thanks to the new electronics this new generation of product is 30 to 60% lighter than the previous one. The weight of the 24 volt 100 amp unit is just under 9 Lbs. -

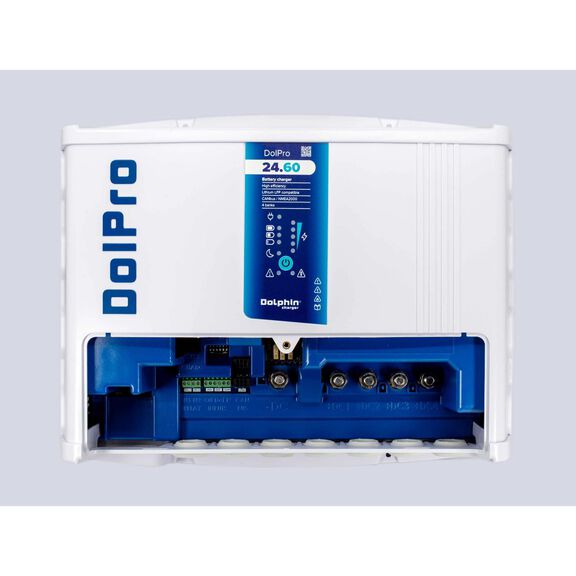

4 Independent isolated outputs
All PRO EVO3 offer 4 independent isolated DC outputs. It allows to simplify the charging system consists of several battery banks. -
NMEA 2000
NMEA 2000 plug & play communication skills. All PRO EVO3 chargers feature CAN communication port including certified N2K port with latest PGEN. -
High-Efficiency DSP technology
PRO EVO3 Chargers deliver full power even at very high temperatures (up to 50°C/122°F). This "no derating" feature is quite unique on the market. -
Selectable Battery Chemistries
8 Selectable charging profiles including Lead Acid, Gel, AMG, Lithium-Ion batteries with temperature compensation. -
Ignition Protected
PRO EVO3 12.90 is now ISO 8846 and SAE J1171 certified.
