ATMOS 12V Built in Boat Inflator Deflator Pump with Adapters

ATMOS by Scanstrut is a cutting-edge onboard air station designed to enhance your family’s boating experience. This sleek and compact device is engineered to quickly and efficiently inflate and deflate paddleboards, towables, and other water toys at the touch of a button. With its advanced technology, ATMOS makes getting out on the water easier and faster, saving time and effort compared to traditional manual pumps or low-quality 12V plug-ins.

Key Features:

• 12V Power Supply: Operates on a 12V battery system (10-14V), drawing a maximum of 12A (140W), with a standby current draw of just 0.2W.

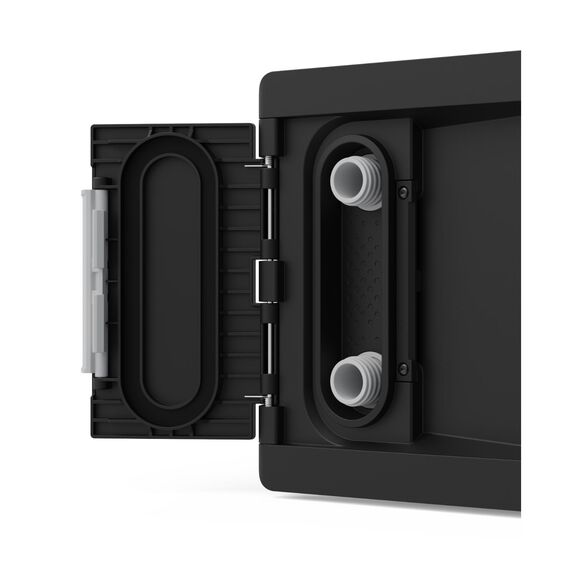

• Waterproof Protection: With an IPX6 waterproof rating, ATMOS ensures reliable performance in harsh marine environments. The built-in foam gasket seals the device, preventing water intrusion, and the waterproof door design allows easy access to inflate and deflate valves.

• Innovative Two-Stage Pump System: The ATMOS features a unique two-stage pump system:

  • Stage 1 (HVLP): High-volume, low-pressure for quickly inflating larger items like kayaks, tubes, and bathing platforms.

  • Stage 2 (HPLV): High-pressure, low-volume for inflating smaller items like SUPs and inflatable kayaks.

• Inflation and Deflation: ATMOS allows for efficient inflation and deflation, with the ability to inflate a 10.6 ft SUP to 20 PSI in 6 to 8 minutes, or deflate it in just one minute. Towables inflate in about 3 minutes, and swim platforms take around 16 minutes to reach 5 PSI.

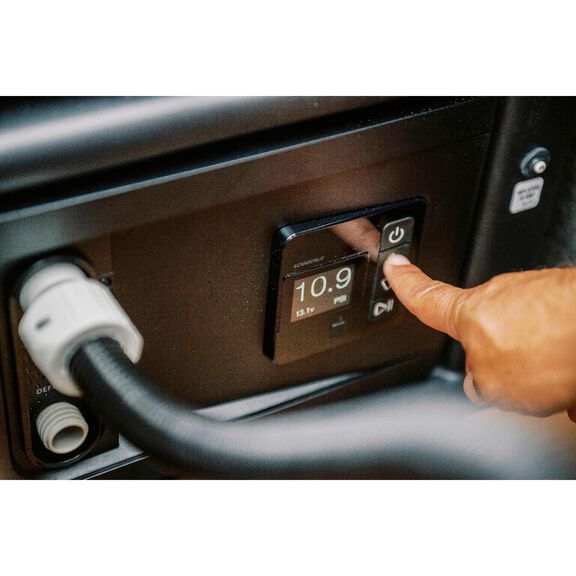

• LCD Display: The high-brightness LCD display offers clear visibility even in bright sunlight, with a live voltage readout to monitor battery health.

• Soft Touch Buttons: Designed for use in marine environments, these durable buttons are resistant to salt water, UV rays, and other elements. Their non-slip texture ensures ease of use even with wet hands or gloves.

• Compact Design: ATMOS is designed to fit seamlessly into your boat’s panel, making it easy to install near seating consoles or the swim platform. Its shallow design and compact size allow it to be installed with minimal depth requirements.

• Protective Features: The air station is equipped with multiple protection mechanisms, including reverse polarity protection, short-circuit protection, under-voltage protection, and thermal cutoff to prevent overheating during prolonged use.

Specifications:

• Maximum airflow: 350 LPM/12.3 CFM (0-1 PSI), 70 LPM/2.5 CFM (1-20 PSI)

• Ambient operating temperature range: -20°C to +50°C

• Maximum run time: 25 minutes (for up to 3 SUPs)

• Included accessories: 2.5-meter (8ft) hose, 6 valve adapters (Boston Valve, C7 Valve, H3/HR Valve, Pinch Valves, 805 Valve), and a hose/connectors storage net bag.

Installation: ATMOS can be easily installed into any panel using 10 self-tapping screws, with a foam gasket to ensure a secure and waterproof fit. It requires a cavity depth of 110mm (4.33") and can be installed at angles between +10° and -30° from vertical.

Safety and Certification: ATMOS meets high safety standards, including ISO 8846 and SAE J1171 for ignition protection. It’s also CE, ROHS, and UN ECE R10 certified, ensuring that it complies with the required industry standards for safety and performance.

Warranty: Scanstrut provides a 2-year warranty for the ATMOS, offering peace of mind with your purchase.

With ATMOS, you’ll experience a new level of convenience and performance, allowing you to spend more time enjoying the water and less time struggling with manual pumps or subpar air stations.
