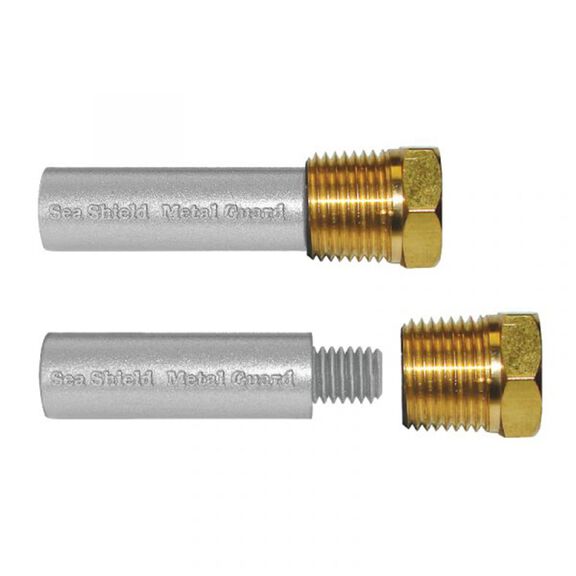

Sea Shield Marine Engine Pencil Zinc Anode with Brass Plug, 3/8" NPT x 1"
Protect your marine engine block and heat exchanger from internal galvanic corrosion with the Sea Shield Marine E-1G-COMPLETE Engine Pencil Zinc Anode. This complete assembly threads into engine cooling water passages via a high-quality 3/8" NPT brass pipe plug, placing the zinc anode directly within the cooling water channels where it guards internal engine components against the destructive effects of electrolysis.
The zinc rod measures 1/2" in diameter by 1" in length and weighs 0.12 lbs; a 11/16" wrench fits the brass plug for straightforward installation and removal. Conforming to military specification MIL-A-18001, the zinc alloy is specifically formulated for this application—engine manufacturers including Cummins, Yanmar, and Caterpillar rely on zinc for pencil anodes because aluminum pencil anodes are known to break at the neck and can block coolant channels. Compatible with Onan generator applications (replaces Onan 130-4434 and 130-1340).
The brass plug is precision machined from high-quality material for a leak-free fit. Made in California, USA. Replace pencil anodes at each service interval—typically annually or whenever the zinc rod has been reduced by half—to ensure uninterrupted protection of your engine's internal passages.
Key Features
- Zinc
- Mil-Spec: MIL-A-18001
- Weight: 0.12 lbs
- Replaces OEM: Onan 130-4434, Onan 130-1340
- Plug Thread: 3/8" NPT
- Zinc Rod Diameter: 1/2"
- Length: 1"
- Made in: USA
