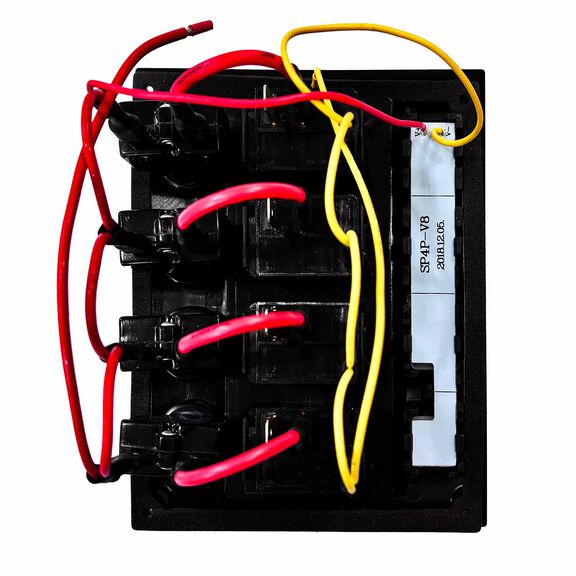

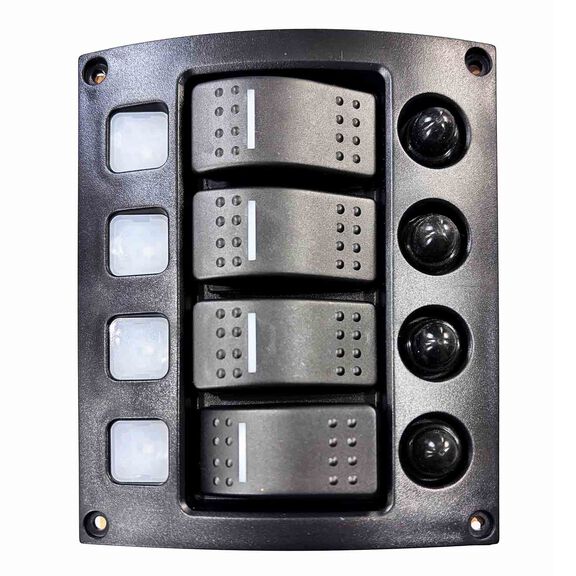

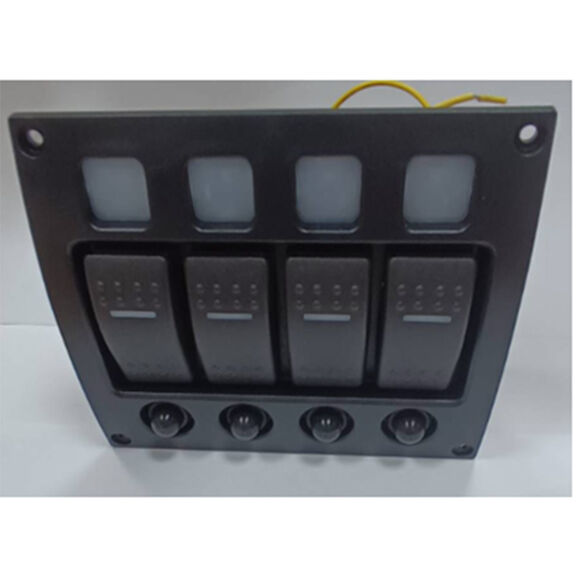

4 Position Curved Water-Resistant LED Switch Panel with Circuit Breakers
Model #
22947501
Mfg #
E3-SP3314P
$89.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
4 Position Curved Water-Resistant LED Switch Panel with Circuit Breakers
Model #
22947501
Mfg #
E3-SP3314P
$89.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
BLUE SEA SYSTEMS
$59.99
SEAFIT 4 Position Curved Water-Resistant LED Switch Panel with Circuit Breakers
these switch panels are one of our most weather-proof switch panel series. The modular mini panels allow consumers to build switch panels with their own customized features. With modern curved faceplate design and new backlighted label features, thes e panels are stylish, high performance switch panels with complete features.
Dimensions:
Product Dimensions (W x H) | 114 x 133mm
Mounting Depth | 75mm
Panel Cut-out (W x L) | 101 x 120mm
Key Features
- New modern curved and compact panel design (15% smaller than SP30xx series)
- Mini modular panels allow free combinations at consumers' side
- Backlight modules for labels, allowing easy operation in darkness
- IP66–protect against strong water jets
- Push-reset circuit breakers with rubber boots
- Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
Includes:
- Watertight mounting gasket included
- Square shaped label stickers (30pcs) allow vertical or horizontal installation
Capacity
Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage) Panel Rating | Maximum Cumulative Amp: 45A(Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
Material
Faceplate | Curved shaped plastic (ASA)
Warranty
One Year
