Push/Pull Switch Off/On1&2/On1&3 3 Position, SPDT
Model #
22332662
Mfg #
17951153
$34.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

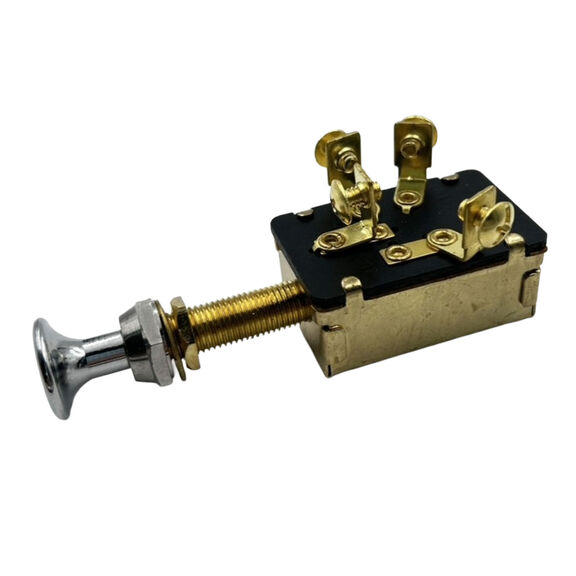

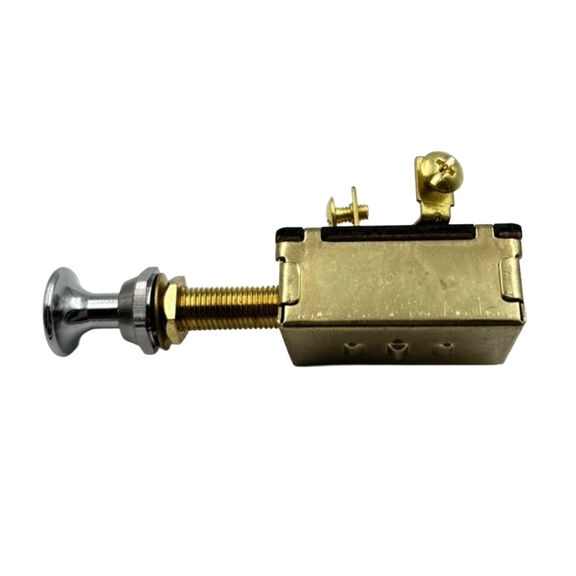

SEAFIT Push/Pull Switch Off/On1&2/On1&3 3 Position, SPDT

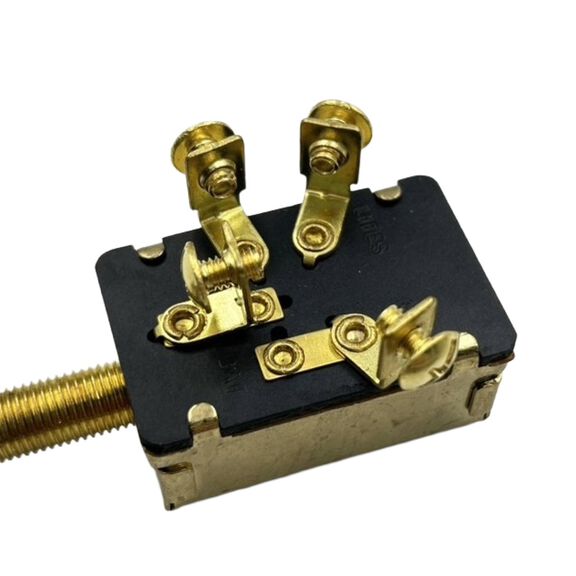

Single pole, double throw switch turns on position 1 and 2 or position 1 and 3. Can be used to combine nav lights and anchor light with shared bulbs. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. All knobs are screw-on type. Nominal voltage is 6-36V DC. Rated for 10A at 12V DC. #8-32 screw terminals. Fits panels up to 1" thick. Replaces Cole Hersee part number M-532.
Key Features
- Dimensions: 1 1/4" Length x 3/8" Diameter Stem. Fits Panels To 1" Thick
- Type: 3 Position, Off/On #1 & #2/On #1 & #3
- Voltage: 12 Volts DC
