SEAFLO Electronic Water Level Alarm Control System with 3-Way Switch
Complete Your Purchase
SEAFLO Electronic Water Level Alarm Control System with 3-Way Switch

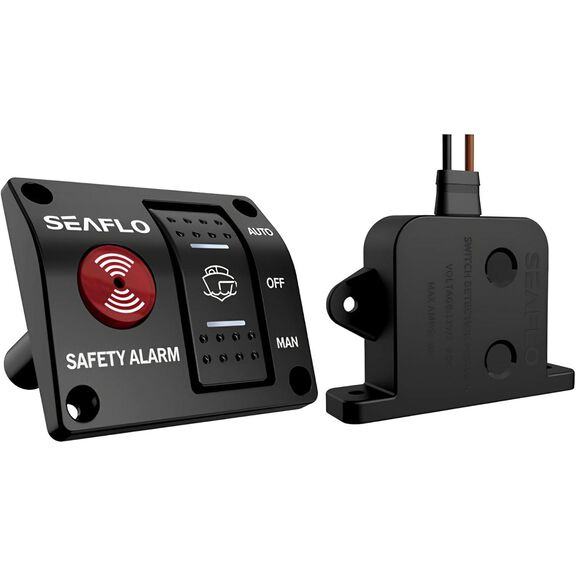

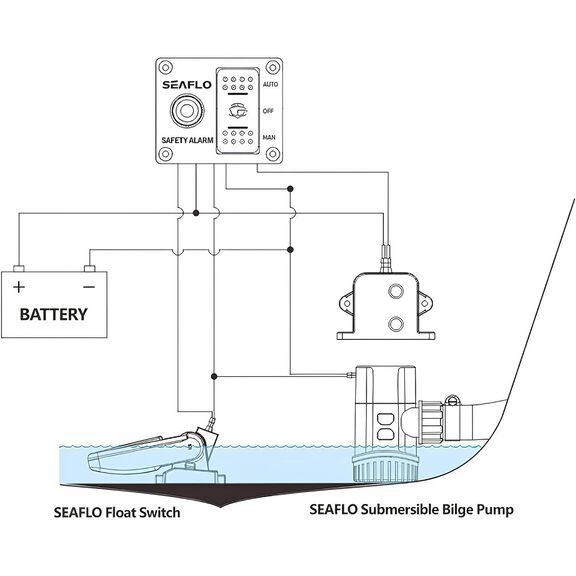

The SEAFLO Electronic Water Level Alarm Control System automatically monitors bilge water levels and provides both audible and visual alerts when water exceeds the safety line. The system features a fully sealed, solid-state sensor that never comes into direct contact with water, making it resistant to corrosion, oil, sludge, and debris. A 3-way switch allows the audible alarm to be muted while the LED warning remains active for quiet monitoring. The system activates connected bilge pumps at approximately 1.6 in. (41 mm) and turns them off at approximately 0.37 in. (9.5 mm), with a built-in 3-second delay to reduce false activations from splashing or vessel movement. Compatible with SEAFLO bilge pumps up to 20A at 12V or 10A at 24V, as well as sewage ball switches and other electronic water level switches. Includes the electronic water level alarm control system with integrated float switch and safety alarm.
Key Features
- Automatic Water Level Monitoring: Detects rising bilge water and automatically activates the connected pump while providing audible and visual warnings.

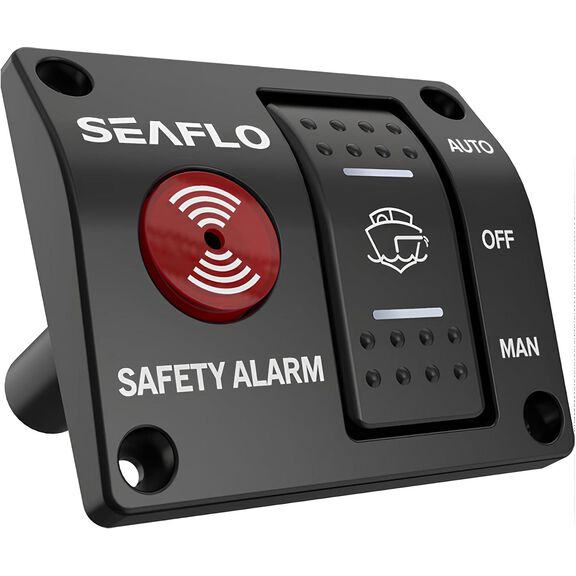

- Audio and Visual Alerts: Features an 85 dB alarm, bright red LED indicator, and a 3-way switch that allows silent monitoring with the LED remaining active.

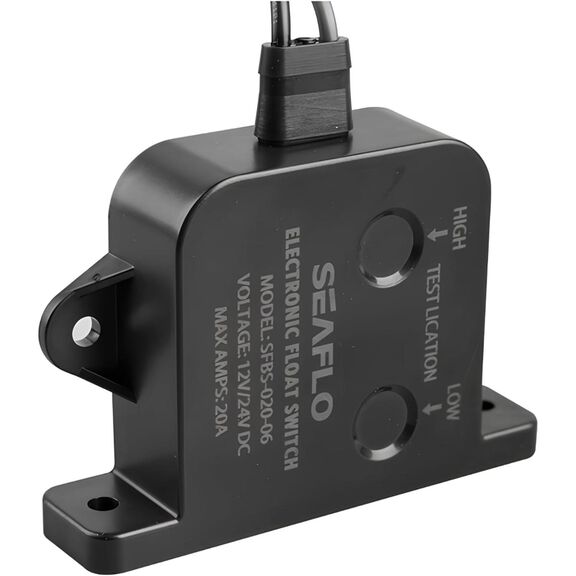

- Sealed Solid-State Sensor: Uses electric field sensing with no moving parts, keeping the sensor isolated from water, oil, sludge, and debris for maintenance-free operation.
- Built-In Splash Delay: Includes a 3-second activation delay to minimize false starts caused by wave action or splashing in the bilge.
- High-Capacity Compatibility: Supports SEAFLO bilge pumps up to 20A at 12V or 10A at 24V and is compatible with sewage ball switches and other electronic water level switches.
