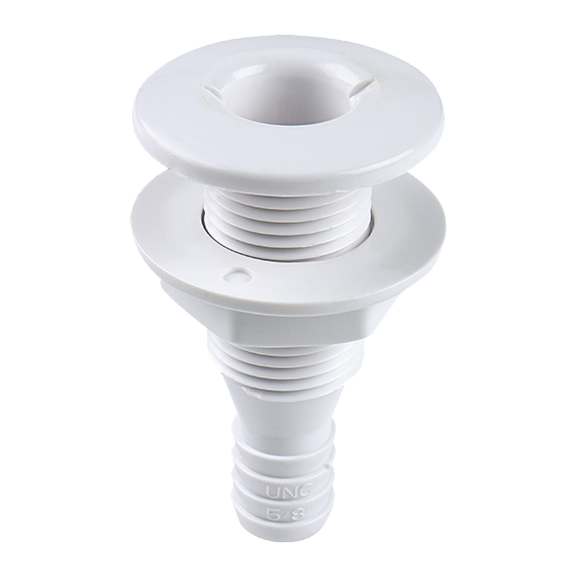

SEAFLO Marine Thru Hull Fittings (Plastic)
SEAFLO Marine manufactures a comprehensive range of plastic thru-hull fittings engineered for reliable marine installation. The SFDS1-0625-01 is a 5/8" white thru-hull fitting designed for installation through the transom of a boat. These fittings are ideal for overflow use in livewell installations or as an exhaust port for a bilge pump, providing a secure and watertight connection point in the hull. Their plastic construction is specifically formulated to resist degradation caused by prolonged exposure to chemicals and saltwater, ensuring long-term reliability in demanding marine environments.

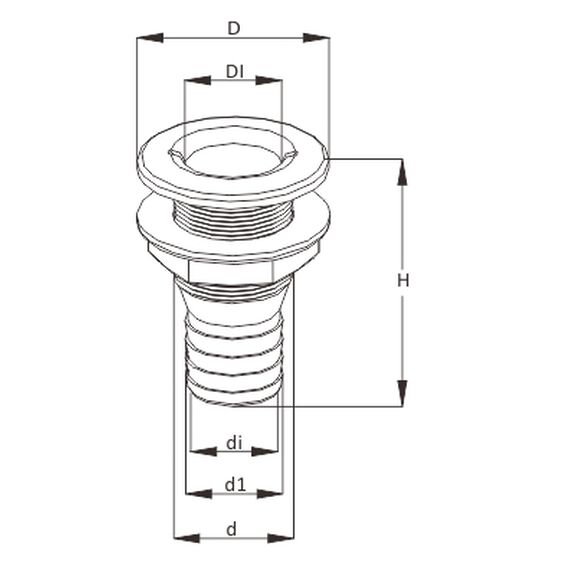

The 5/8" model features a total height of 73.5 mm and an outer flange diameter of 42.0 mm, with an inner bore diameter (di) of 10.0 mm, making it well-suited for small-diameter overflow and bilge exhaust applications. At just 0.024 kg, this fitting is lightweight yet durable. Each unit is packaged individually in a compact selling unit measuring 40.0 mm × 30.0 mm × 27.0 mm, and master cartons contain 200 units.
SEAFLO's thru-hull fittings are available across a broad size range — from 5/8" up to 2" — and in both White and Black finishes, allowing installers to match the fitting to the boat's aesthetic. The consistent plastic construction across all sizes ensures the same high level of chemical and saltwater resistance throughout the product line.
Key Features
- Designed for transom installation in marine vessels
- Ideal for livewell overflow use and bilge pump exhaust applications
- Plastic construction resists degradation from chemicals and saltwater exposure
- 5/8" size with 73.5 mm height and 42.0 mm outer diameter
- Inner bore diameter (di) of 10.0 mm
- Lightweight at 0.024 kg net weight
- Available in White and Black finishes
- Full range available from 5/8" up to 2"
