Top Down Riser - FTDR4

Seaview Top Down Riser - FTDR4

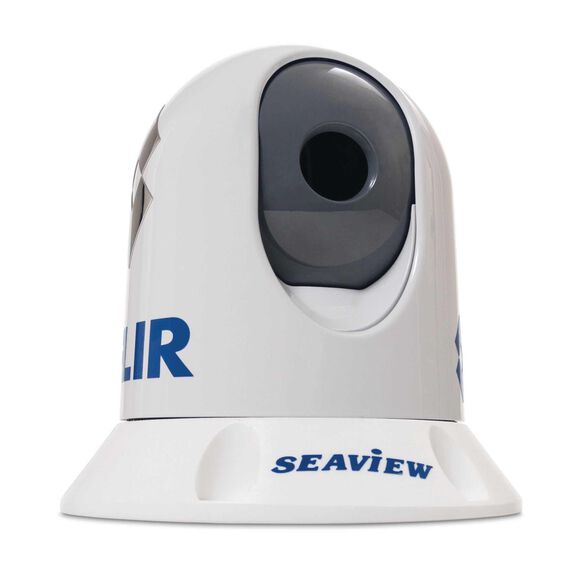

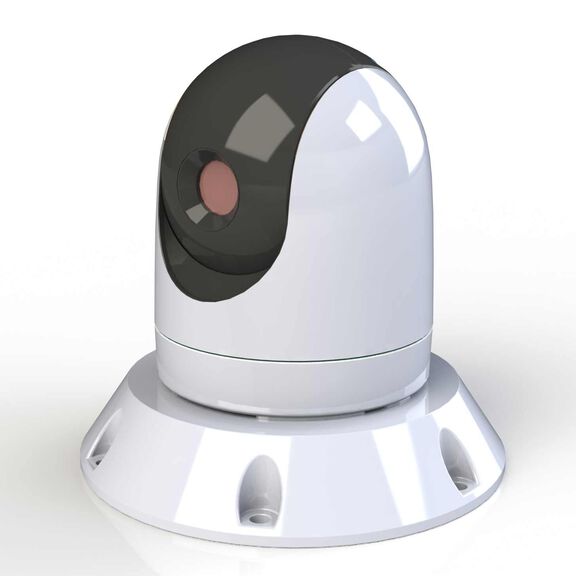

The Seaview Top Down Riser FTDR4 is the definitive mounting solution for mariners who need to install FLIR M400, FLIR MD Series, or Sionyx Nightwave thermal cameras on their vessel's cabin roof. Engineered with flexibility in mind, this riser enables the camera to be mounted either upside down or a conventional upright position, giving boat owners and installers the freedom to optimize camera placement for maximum coverage and performance.

Built to withstand the demanding conditions of the marine environment, the FTDR4 is manufactured from white ABS glass-filled plastic. This material composition is specifically chosen to prevent cracking under exposure to UV rays, saltwater, extreme temperatures, and the mechanical stresses common in offshore use. Additional structural ribbing is incorporated into the design to further enhance rigidity and long-term durability, ensuring the mount remains secure even in rough seas.

With a profile measuring 12.75 inches in length (Dimension A), 2.4 inches in width (Dimension B), and 11.75 inches in depth (Dimension C), the FTDR4 provides a substantial riser height suitable for professional-grade thermal camera installations. The white finish integrates cleanly with most vessel superstructures.

Key Features

• Unique design allows mounting of FLIR M-Series, FLIR MD Series, or Sionyx Nightwave cameras upside down or upright on the cabin roof
• Constructed from white ABS glass-filled plastic to resist cracking in severe marine conditions
• Structural ribbing integrated throughout for increased strength and rigidity
• Compatible with FLIR M400, FLIR MD Series, and Sionyx Nightwave thermal cameras
• Dimension A: 12.75", Dimension B: 2.4", Dimension C: 11.75"
• Part number FTDR4 — the larger of the Top Down Riser family (vs. FTDR3)
