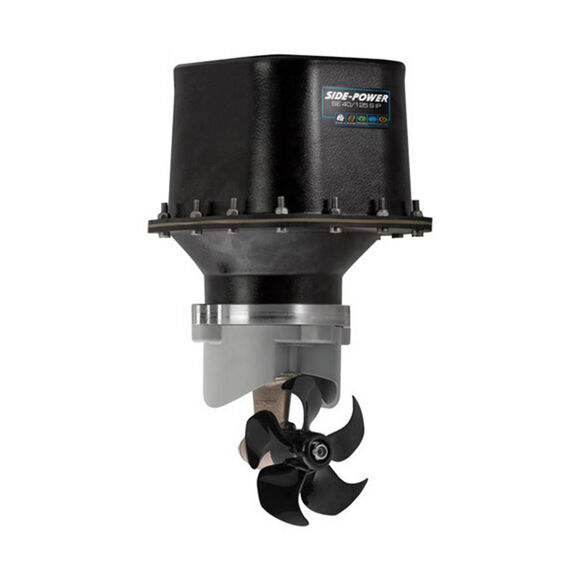

Side-Power SE Series 40kg Ignition Protected Thruster 12VDC
To provide reliable & safe thruster installations in more boats, we offer modified versions of our DC electric thrusters in watertight housings for use in stern & other locations that may get wet or be exposed to petrol fumes. These thrusters are fully ignition protected (ISO 8846) for use in boats with petrol engines. They have a hermetically sealed composite housing around all electric parts. This provides the ignition protection as no petrol fumes can enter & be ignited by sparks. The other advantage is that the electric parts that could be damaged by water are also covered & protected, making these thrusters the ideal choice for other stern thruster installations where it is difficult to ensure that the thruster will always remain dry. This new Ignition Protected model increases our range of IP models & is the perfect fit for stern thruster on smaller gas engine boats.
- Certified to ISO 8846 Ignition Protected standards
- Galvanic separation/insulation
- Ignition protected
- Q-prop™ propeller
- Single propellers
- Gravity feed lubrication
- Sealed drive/lifetime lubricated
- New flexible coupler
- Revised gearleg/end caps
- Design upgrades
- Water proof (not recommended for fully submerged mounting)
- Sealed battery terminals on housing
- Sealed control cable connection on housing
- 9m control harness lead included
- Splined shaft for propeller attachment
- Power: 2.2kW at 10.5 Volts
- Internal Tunnel Diameter: 125mm
- Propulsion System: Single, 5-Blade
- Boat Size: 26 to 34'
- Battery Capacity: 570 CCA SAE
- (TL min.) Minimum Tunnel Length: 111mm / 4.37in
- (TL) Recommended Tunnel Length: 136mm / 5.35in
- (T min.) Minimum Tunnel Wall Thickness: 4mm / 0.16in
- (T max.) Maximum Tunnel Wall Thickness: 6mm / 0.24in
