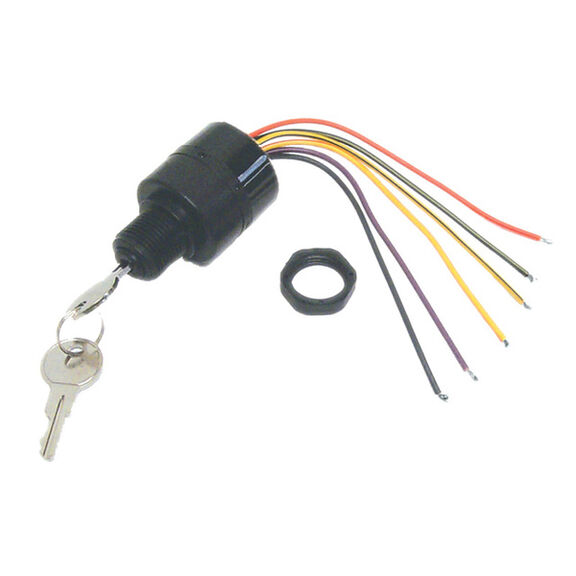

3-Position Magneto Ignition Switch, Push-to-Choke
Model #
10529980
Mfg #
MP41070-2
$39.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
3-Position Magneto Ignition Switch, Push-to-Choke
Model #
10529980
Mfg #
MP41070-2
$39.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
This magneto ignition switch is a direct replacement for Mercury Marine 87-17009A2 and 87-17009A5.
Sierra's Polyester Ignition Switch is impact- and corrosion-resistant and fits a standard 7/8"dia. hole. The six color-coded wire leads match Mercury Marine factory color codes for easy installation. This three-position magneto switch provides Off-Run-Start with push-to-choke. Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position magneto switch
- Push-to-choke
- Interchangeable with Mercury Marine 87-17009A2, 87-17009A5
- Colors on switch wires match factory color codes
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Short, 5/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: Six color-coded wire leads/potted
- Back Up Nut: Not required
- Face Nut: Hex black plastic
- Choke: Push-to-choke
- Positions: Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
- Choke: 7A @ 12V DC
Type
Switches
