MP39090 Heavy-Duty Polyester Ignition Switch
Model #
10529907
Mfg #
MP39090
$59.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

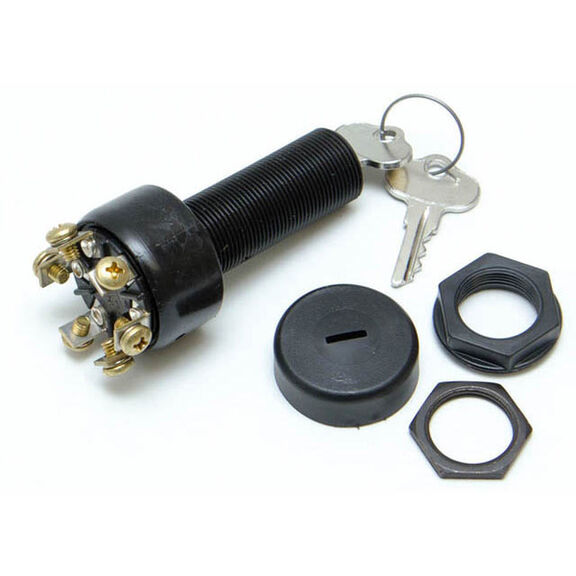

This three-position magneto switch is impact- and corrosion-resistant.
Sierra's Heavy-Duty Polyester Ignition Switch fits a standard 7/8"dia. hole and includes a snap-on rubber cap for additional protection from mist or spray. Nickel-silver screw terminals ensure long-lasting conductivity. This three-position magneto switch provides Off-Run-Start with push-to-choke (6 terminals). Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Three-position magneto switch
- Interchangeable with Cole-Hersee #M832BP
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Long, 1 1/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 6 screw tab
- Back Up Nut: Anodized steel
- Face Nut: Hex plastic with snap-on rubber cap
- Choke: Push-to-choke
- Positions: Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
- Choke: 7A @ 12V DC
Diameter
7/8" Mounting Hole
Type
Switches
Warranty
One Year
