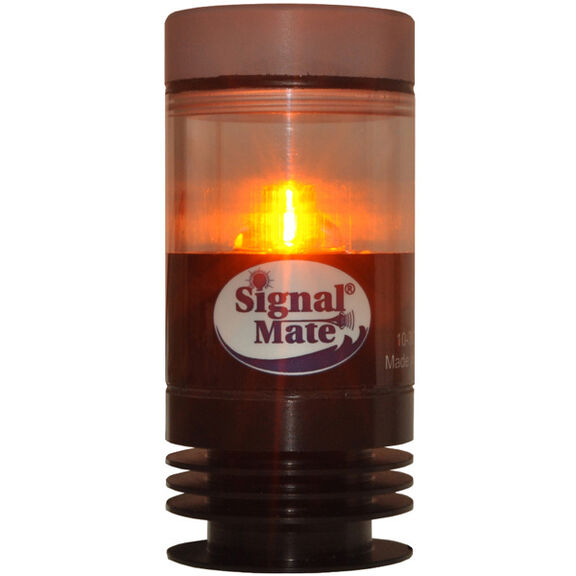

Pedestal Mount LED All-Round Hovercraft Amber Navigation Light

Signal Mate's 2NM 360° Yellow LED Light is used for air-cushioned vessels (hover craft) while in the non-displacement mode up to 164' (50m).

This light is small but robust, featuring latest technology high-brightness LEDs. It flashes at 120 flashes per minute (fpm) and features a secondary optics to increase the brightness while maintaining low current draw. Constant brightness over the full operating range of 10V to 30V DC ensures the light will meet or exceed nautical mile requirements if the battery voltage drops. Active & passive RF filtering to prevent radio interference. Reverse polarity-protected, surge-protected, waterproof and vibration-proof. Includes bracket.

Specifications:

• Visibility: 2nm
• LED: Amber (Yellow)
• Voltage Range: 10 to 30VDC
• Current Draw: 0.160 amps at 12VDC
• Horizontal Viewing Angle: 360 degrees
• Vertical Viewing Angle: +/- 18 degrees
• Height: 3 1/4"
• Diameter: 1 1/2"
• Weight: 5.2 oz
• Wiring: 2.5 feet UV outdoor cable, 20 AWG wire
• Installation: 1/4 - 20 female threads at bottom
• Durability: Waterproof, submersible, designed to exceed IP67
• Warranty: 5 years
• Certifications: USCG 2nm, ABYC-A16, COLREGS 72

Product Manual
