Rebate
LF3000 Linear Feedback
Model #
P011498987
Mfg #
$467.00
Price reduced from
to
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Rebate
LF3000 Linear Feedback
Model #
P011498987
Mfg #
$467.00
Price reduced from
to
Select a Product:
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

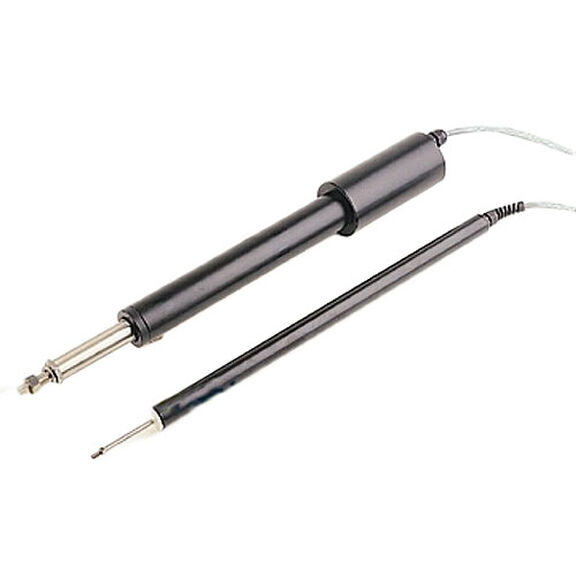

LF3000 is a linear feedback unit for boats with outboard engine. It transforms the linear movement to an analog signal. Supplied with 8,5 m cable and mounting clamps.
The LF3000 is a waterproof feedback unit. It has a 300 mm (11,8") stroke and comes with a special mounting bracket which secures the LF3000 to the cylinder of the existing outboard drive unit.
The 8,5 m (28') cable is terminated in the LFI3000 Mk2 Linear Feedback Interface according to the wiring diagram.
LFI3000 Mk2 Linear Feedback Interface
LFI3000 Mk2 is an interface unit for LF3000 Linear Feedback. It converts the analog LF3000 signal to a standard digital feedback signal for the autopilot steering computer.
Autopilot / Autosteering
- Max Stroke 300
- Drive System Variable differential transformer, excitation and signal conversion by separate
Technical / Environmental
- Construction Rod: Stainless, Tube: Epoxy coated seawater resistant aluminum
- Mounting Clamped to hydraulic ram
- Diameter 22 mm \ 0.9 in
- Length 465 mm \ 18.3 in
