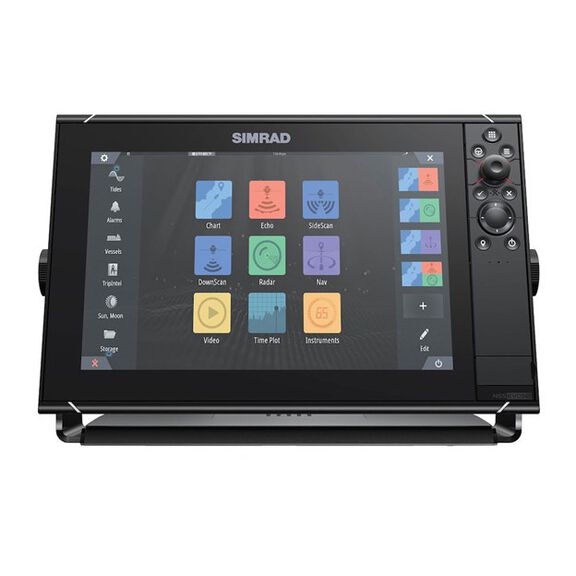

Simrad NSS12 evo3S 12-Inch Chartplotter Fishfinder with US Inland and Coastal C-MAP Charts
The Simrad NSS12 evo3S is a premium all-in-one chartplotter and fishfinder built for serious boaters who want speed, clarity, and total system control at the helm. Whether you're running offshore for sport fishing, cruising the coast, or navigating inland lakes and rivers, the 12-inch display puts charts, sonar, radar, and engine data in one place. The iMX 8 high-performance processor powers fast page changes, smooth screen transitions, and reliable multitasking across every function, so nothing lags when conditions change quickly on the water.
A 12-inch SolarMAX™ IPS display delivers 1200 nits of brightness and ultra-wide 80-degree viewing angles, so the screen stays readable from any seat on the boat, even through polarized sunglasses. The optically bonded panel resists condensation and fogging and holds up under direct sunlight, keeping navigation and sonar data visible when it matters most. Switch between an all-weather multi-touch touchscreen and a full keypad with rotary dial depending on sea conditions, and add optional OP50 remote controllers for hands-free operation anywhere on board.

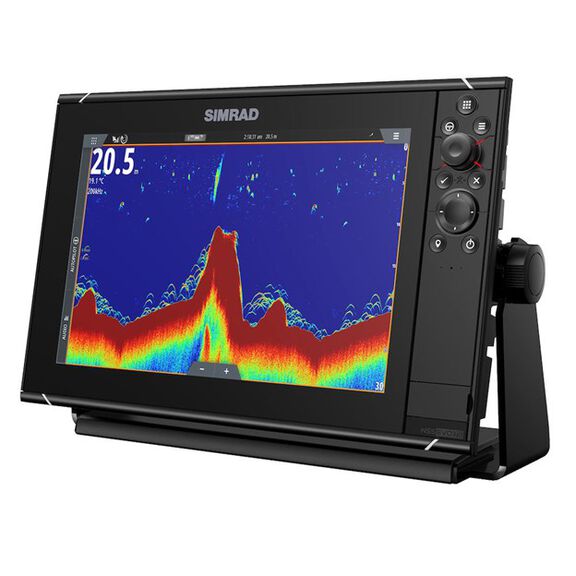

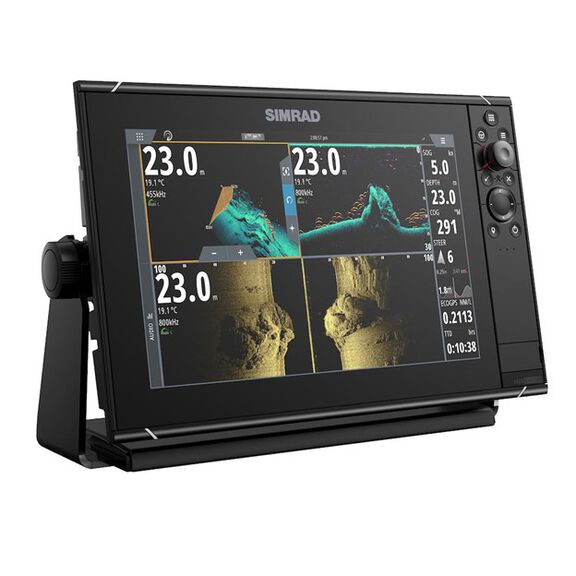

Built-in 1kW CHIRP sonar runs across two independent 9-pin Xsonic ports, giving you the flexibility to connect multiple transducers and expand into ActiveTarget™, Active Imaging™, or StructureScan™ 3D as your fishing needs grow. A 10 Hz GNSS receiver supports GPS, GLONASS, Galileo, Beidou, and QZSS with SBAS correction for 3-meter horizontal accuracy and a 50-second cold start. Built-in Wi-Fi and Bluetooth connect to the Simrad App for chart and waypoint access on and off the water, while dual Ethernet ports, NMEA 2000, and NMEA 0183 make it easy to build a full multi-display helm system with Simrad HALO™ radar, autopilot, audio, and more.
Why You'll Love It

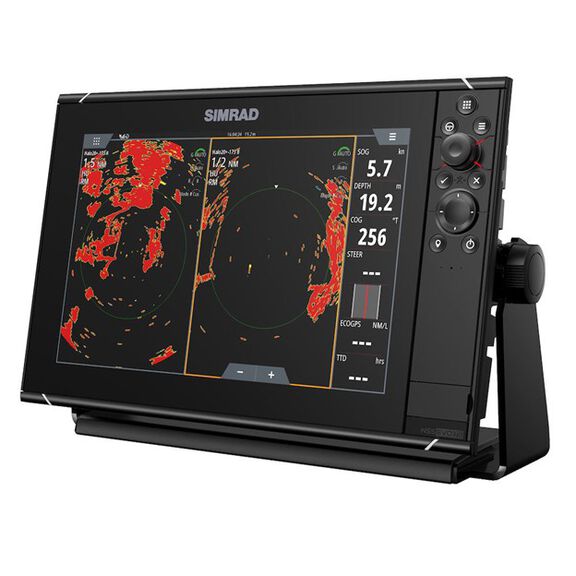

This display is built to grow with your boat. Preloaded C-MAP® US Inland and Coastal charts give you 1-foot depth contours and Easy-Routing right out of the box, and the system integrates with Simrad HALO™ radar, NAC-2 and NAC-3 autopilots with SteadySteer™, SonicHub2 audio, and third-party gear like CZone® digital switching and Mercury® Smart Tow®. Whether you're adding a second display down the road or wiring in a full electronics suite, the NSS12 evo3S is designed to be the hub that ties it all together.
Key Features
- iMX 8 high-performance processor: Delivers fast page changes, smooth screen transitions, and reliable multitasking across charts, sonar, and radar
- 12-inch SolarMAX™ IPS display: Produces 1200 nits of brightness and 80-degree viewing angles, readable even through polarized sunglasses
- Built-in 1kW CHIRP sonar: Two independent 9-pin Xsonic ports support multiple transducers and expansion into ActiveTarget™, Active Imaging™, and StructureScan™ 3D
- Touchscreen and keypad control: Switch between all-weather multi-touch operation and a full keypad with rotary dial, or add optional OP50 remote controllers
- Built-in GPS and wireless connectivity: 10 Hz GNSS receiver with GPS, GLONASS, Galileo, Beidou, and QZSS support, plus built-in Wi-Fi and Bluetooth for smartphone mirroring and the Simrad App
- Preloaded C-MAP® US charts: Includes US Inland and Coastal coverage with 1-foot depth contours, C-MAP® Reveal data for Florida, and Easy-Routing
- Full system integration: Connects with Simrad HALO™ radar, NAC-2 and NAC-3 autopilots with SteadySteer™, SonicHub2 audio, FusionLink, CZone® digital switching, Mercury® Smart Tow®, and ITC Lighting control
- Engine and autopilot monitoring: NMEA 2000 engine integration displays real-time data on screen, with full autopilot control and commissioning
- Extensive networking: Two 10/100 Mbit Ethernet ports, NMEA 2000, NMEA 0183, dual MicroSD slots, and two composite video inputs support a full multi-display electronics suite
- Flexible mounting: Low-profile flush mount or bracket mount options with 16 GB internal storage and a 2-year manufacturer warranty
Specifications
- Display: 12-inch SolarMAX IPS touchscreen, 800 x 1280 resolution, 1200 nits brightness, 80° viewing angle
- Processor: iMX 8 high-performance processor
- Sonar: Built-in 1kW CHIRP echosounder with two 9-pin Xsonic ports. Port 1: single-channel CHIRP, 50/200 kHz, HDI. Port 2: single-channel CHIRP, 50/200 kHz, TotalScan, LSS HD, ForwardScan
- GPS/GNSS: Built-in 10 Hz GNSS receiver supporting GPS, GLONASS, Galileo, Beidou, and QZSS with SBAS correction (WAAS, EGNOS, MSAS, GAGAN), 3-meter horizontal accuracy, 50-second cold start
- Wireless Connectivity: Built-in Wi-Fi and Bluetooth
- Networking: Two 10/100 Mbit Ethernet ports, one NMEA 2000 Micro-C port, NMEA 0183 input and output, two composite video inputs, dual MicroSD card slots
- Internal Storage: 16 GB
- Waypoints, Routes, Tracks: 6,000 waypoints, 500 routes (100 max points each), 50 tracks with up to 12,000 track points
- Chart Coverage: Preloaded C-MAP US Inland and Coastal charts with 1-foot depth contours, C-MAP Reveal data for Florida, and Easy-Routing
- Satellite Weather: SiriusXM WM-4 satellite weather and Fish Mapping, subscription required, U.S. only
- Warranty: 2-year manufacturer warranty
What's Included
- Simrad NSS12 evo3S Multifunction Display with preloaded C-MAP charts
- Sun cover
- Dash mount kit
- Mounting bracket
- Edge bezels
- Power cable
- 4-pin connector
