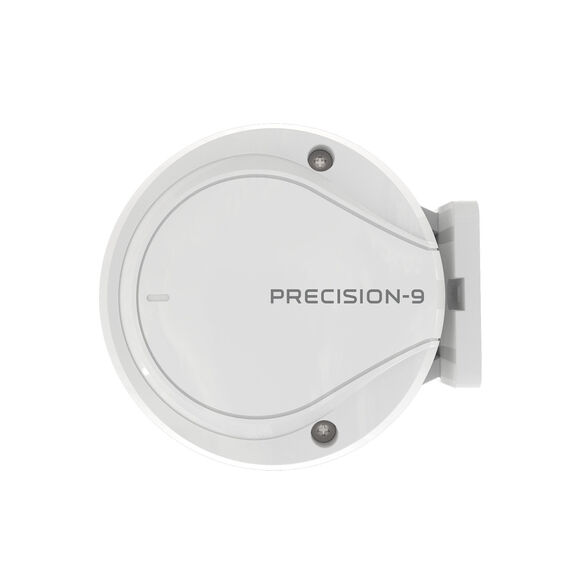

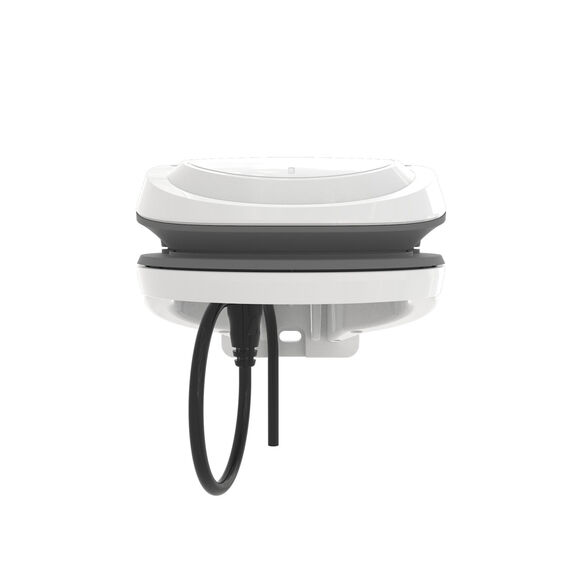

Precision 9 Rate Compass

Supplies accurate heading and rate-of-turn information to compatible Simrad, Lowrance or B&G autopilot, radar and navigation systems over an NMEA 2000 connection.

The Precision-9 Compass supplies accurate heading and rate-of-turn information to Simrad autopilot, radar and navigation systems over an NMEA 2000 connection. With an internal array of solid-state sensors constantly measuring motion and orientation on nine axes, the Precision-9 also provides pitch and roll data to compatible equipment. An easily adjustable mounting bracket and single-cable connection allow simple installation aboard any vessel, including up-mast mounting suitable for steel hulls.

NMEA 2000 Heading and ROT Output: With NMEA 2000 output, the Simrad Precision-9 Compass provides heading, Rate Of Turn (ROT), pitch and roll information to connected equipment including autopilots, radar, multi-function displays, and other navigational systems.

Solid-State Sensor Technology: The Precision-9 Compass incorporates a sophisticated solid-state sensor array based on MEMS technology. This high-precision array measures motion on nine separate axes in order to calculate the most accurate heading and rate-of-turn information possible, avoiding many common limitations of conventional fluxgate electronic compasses and delivering heading accuracy of ±2 degrees after calibration.

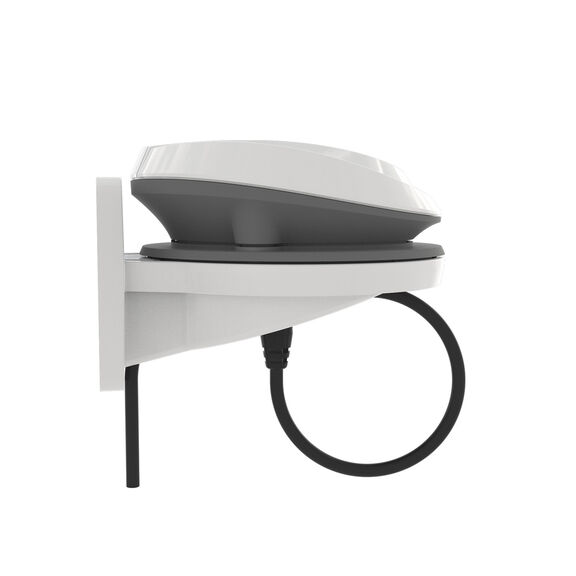

Mount Almost Anywhere: An easily adjustable mounting bracket allows the Precision-9 Compass to be installed on any vessel, in almost any location. The compass may also be mounted directly to any flat surface and, with an IPX7 waterproof rating, external up-mast installation is possible on steel hulled vessels to avoid magnetic interference. Installation is further simplified by NMEA 2000 connectivity, with a single cable carrying both power and data.

Key Features

• Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000
• Accurate and reliable solid-state sensor technology
• Heading accuracy of ±2° after calibration
• Easily adjustable mounting bracket allows bulkhead or up-mast installation
• IPX7 waterproof for external up-mast mounting on steel hulled vessels
• Simple installation with a single NMEA 2000 connection

Output on NMEA 2000 Format

• Messages: PGN 127250, 127251, 127257, 127252
• Data Output: Magnetic heading (20 Hz), rate of turn (20 Hz), pitch/roll (10 Hz), heave (10 Hz)
• Status information

Specifications

• Dimensions: 4 11/16"W x 1 7/16"H x 4 11/16"D
• Mounting Style: Bulkhead or flat surface
• Cable Length: 15' incl. connector
• Repeatability: +/- 1.0° (or better)
• Roll/Pitch Range: +/- 45°
• Heading Accuracy: +/- 2° after calibration
• Voltage: 8-16V DC via NMEA 2000
• Power Consumption: 0.4W (LEN: 1)
• Waterproof Rating: IPX7
• Warranty: Two years

What's in the Box

• Precision-9 Compass
• Micro-C T-connector 000-0119-79 N2K-T-RD
• 15' NMEA 2000 cable 000-0119-86 N2KEXT-15RD
