This product is not longer available, we recommend a similar product instead:
Clearance
RPU160 Reversible Hydraulic Autopilot Steering Pump
Model #
18057612
Mfg #
000-13766-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
RPU160 Reversible Hydraulic Autopilot Steering Pump
Model #
18057612
Mfg #
000-13766-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

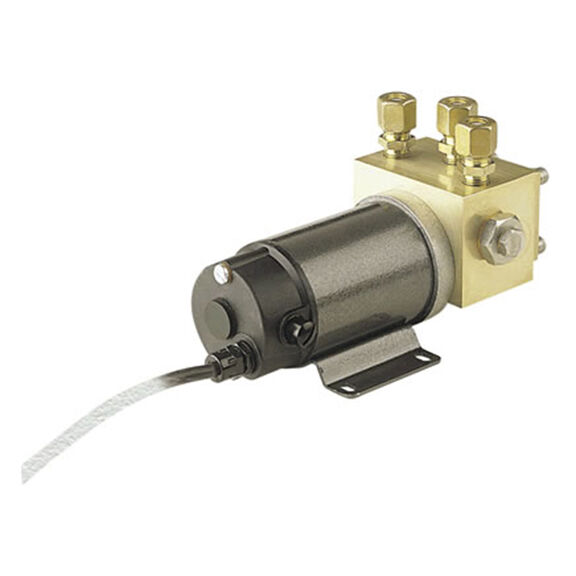

The RPU160 is a reversible hydraulic steering pump for boats up to 50'.
A reversible hydraulic steering pump is used to add autopilot capabilities to outboard or sterndrive (inboard/outboard) vessels with existing hydraulic steering systems. It works in conjunction with Simrad autopilot computer as part of an autopilot system. Larger boats need larger pumps; this pump is recommended for the high-current NAC-3 autopilot computer.
Specifications
- Application: Vessels with stering ram capacity of 9.8-33.5cu.in.
- Boat Length: 35-50'
- Hydraulic Ram Capacity: 9.8-33.5cu.in. (160-550cc)
- Maximum Pressure: 60 BAR
- Dimensions: 8 5/32"L x 4 5/16"W x 4 5/8"H
- Amperage: 3-10A @ 12V
- Autopilot Computer: NAC-3
- Hardover Time: 8-20 seconds
Type
Drive
Best Use
Hydraulic Steering
Drive Type
Hydraulic
Maximum Boat Displacement
50 Feet to 35000 Pounds
Type
Drive
Warranty
One Year for Defects in Material and Workmanship
