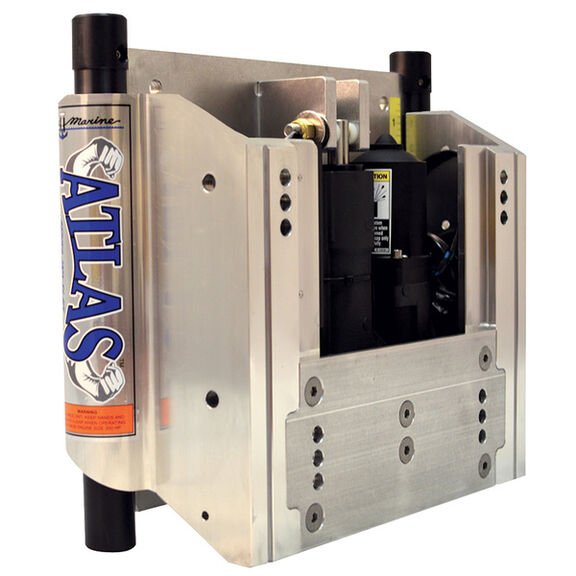

Atlas Hydraulic Jack Plate, 12"
Model #
15920994
Mfg #
AHJ-12V-DP
$2,121.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
FASCO FASTENER
$0.21
-
$15.99
Price reduced from
$1.79
to
-
Price reduced from
$15.99
to
Select Items on Clearance
Self-contained, sealed hydraulic actuators built into a rugged 6061 aluminum frame deliver fast, eight-second lift time and the power to handle even the heaviest V6 outboards up to 350hp. Rod and slot lifting design features polymer rods for smooth, consistent travel throughout a 5" vertical range of motion. With all the hydraulics engineered into the jack itself, the need to install separate pumps and reservoirs or to run hydraulic lines through the transom is eliminated—reducing installation time and minimizing service requirements.
- Setback: 12"
- Application: Hydraulic jacking plate
- Activation Method: Self-contained hydraulic
- Engine Capacity: 350hp
- Material: T6 6061 aluminum
- Performance: 5 3/4" hydraulic rise; 8 1/4" to 9 3/4" total rise
- Dimensions: 12 1/2"H x 16 1/2"W (transom footprint)
- Warranty: Three years on hydraulics; Limited lifetime on frame
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Capacity
Up to 350 HP
Dimensions
12 1/2"H x 16 1/2"W
Material
T6 6061 Aluminum
Type
Hydraulic Jackplates
Warranty
Three years on hydraulics; Limited Lifetime on Frame
