Electric Low Profile Adjustable Seat Slide 13-1/8" x 10"
Model #
20719381
Mfg #
M20-1013E
$1,149.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Electric Low Profile Adjustable Seat Slide 13-1/8" x 10"
Model #
20719381
Mfg #
M20-1013E
$1,149.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Introducing a fully electric Low Profile Adjustable Seat Slide!

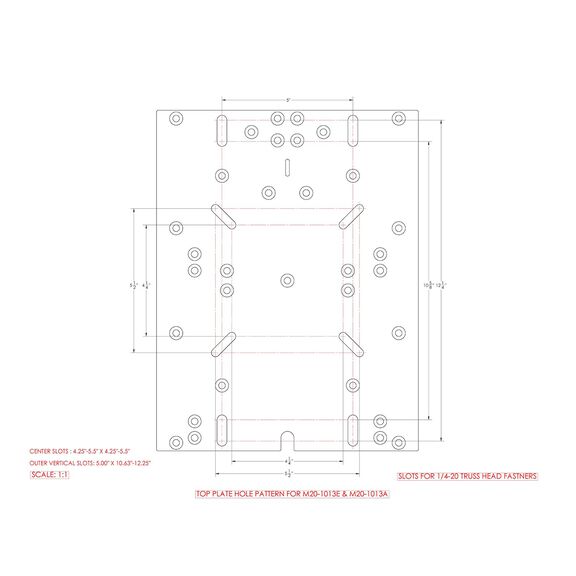

Perfect for seats 23" to 28" wide, this 13-1/8" X 10" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Slide has an IP66 water resistance rating, meets H31 testing standards and features a rail/linear glide system that is self-lubricating, dirt resistant, quite, corrosion free, lightweight and shock resistant. All components are acid etched clear anodized with a precision-machined 6000-series aluminum chassis. With a universal mounting bold pattern, these slides securely fit on both pedestal and box applications. Made in the USA.
Motor Specifications:
- 12V DC 9 AMP Max current Max load 3500N
- Push and pull force of 1500N
- IP66 Rated
- Speed 13.5 mm/Sec @ 1500N
Features:
- Ideal for seats 23" to 28" wide
- Features 5" of travel distance (stroke length)
- Quite operation ≤ 58dB
- Electric actuator
- Self-locking at any given position (at rated loads)
Color
Silver
Dimensions
13-1/8" x 10"
Material
Aluminum
Mount Type
Slide
Type
Seat Parts
Warranty
Three Years Limited
