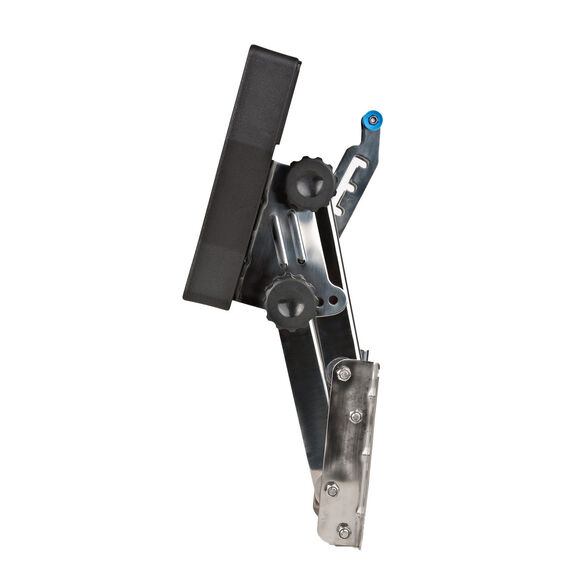

MARINETECH PRODUCTS Adjustable 20 HP 2 Stroke or 15 HP 4-Sroke Outboard Motor Bracket
Adjustable Stainless Steel outboard motor bracket. Works with 4-Stroke motors up to 15hp or 2-Stroke motors up to 20hp, max weight 132lbs. Twist-knob Safety Locks provide increased torque rating while helping secure bracket in place. Built extra-tough and extra-wide for secondary, higher-torque, four-stroke engines. Motor's weight is counterbalanced by heavy-duty stainless steel torsion springs for easy lifting. The 55-0408SS boasts a 2" thick, weatherproof and maintenance-free polypropylene mounting board along with aircraft-type stainless steel hardware. Four-position lock bar and 11" of travel allows for better range of trim adjustment letting you fine tune motor height for optimal performance. Meets ABYC Standards. (Do not use without Panther 55-0415 safety cable—included.)
Rated for long or short shaft engines.
Setback: 8 3/4" in the up position and 14" in the down position
- Four position lock bar
- Five position trim adjustment bolt on side bracket allows for adjustment for reverse angle transoms
- 11” Vertical Travel
- Material: Stainless Steel body with polypropylene board
- Included Equipment: Motor safety cable
- Requires: Backing plate, stainless steel nuts & bolts
- 4 vertical running positions
