7K Pipe Mount Trailer Drill Jack

7K Pipe Mount Trailer Drill Jack

The Trailer Valet TVJX7-P is built for users who need uncompromising strength, fast operation, and dependable results. It features a weld-on pipe bracket (male mount) with a removable female jack, allowing you to stow or detach it when needed. From dump trailers to weekend haulers, the JX7-P makes trailer setups more efficient and safer.

This jack includes both a hand crank and the Trailer Valet drill attachment, enabling lift via any standard 20–24V cordless drill. Eliminate the hassle of slow electric models or labor-intensive manual cranking. It lifts up to 1,800 lbs manually or 900 lbs with a drill, with 13.6 inches of drop leg extension and 14.5 inches of lift travel—providing a full 28 inches of height adjustment to handle any load or terrain.

Engineered for durability, the JX7-P is constructed from a one-piece welded 65 mm square outer tube, a 57 mm inner tube, and a 50 mm drop leg. Its wrinkle black powder coat protects against corrosion and wear. Inside, the 3:4 gear ratio minimizes strain while a protective weather sleeve reduces friction and keeps internal components clean and dry.

Additional features ensure maximum usability. With a retracted height of 23.25 inches and a footprint of 8 x 8 inches, the JX7-P fits compactly yet delivers powerful performance. The integrated footplate ensures stability, and the removable design lets you protect your investment in transit. If you're looking for speed, power, and flexibility in your trailer gear, this jack delivers.

Built-In Safety Features: Our JX series includes clearly implemented Warning and stop indicators located at both the top and bottom of the inner tube. These markers are designed to prevent jack overextension and to prevent reaching the end of gear travel, keeping your equipment safer and extending product life.

Please note: The JX7-P is designed exclusively for weld-on applications. This product is not compatible with any existing Trailer Valet mounting brackets or bolt-on assemblies. For optimal performance and safety, it must be permanently welded to the intended mounting surface.

Key Features:

• Weld-On Pipe Mount Bracket: Secure male pipe bracket welds directly to trailer; jack slides on/off for convenient stowage or security.
• Drill or Manual Operation: Includes Trailer Valet Drill Attachment for use with any 20–24V cordless drill, plus hand crank.
• Massive Capacity: 7,000 lb static load; 1,800 lb manual lift, 900 lb drill-powered lift.
• 28 inches of Total Travel: 14.5 inches internal lift plus 13.6 inches drop leg extension for flexible height adjustment.
• Protective Weather Sleeve: Reduces friction and shields internal parts from the elements.
• Heavy-Duty Build: One-piece welded square tube with a corrosion-resistant, wrinkle-black powder coat.
• Stable Footing: The integrated welded footplate provides a solid base during loading/unloading.
• Smooth Crank System: 3:4 gear ratio provides easy lifting while minimizing gear strain.
• Static Load Capacity: 7,000 lbs
• Lift Capacity (Manual): 1,800 lbs
• Lift Capacity (Drill): 900 lbs
• Lift Travel: 14.5 in
• Drop Leg Extension: 13.6 in
• Total Height Adjustment: 28.1 in

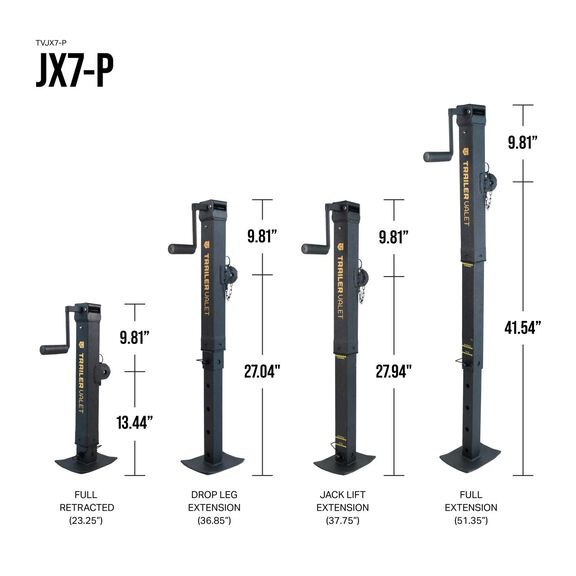

• Total Retracted Height: 23.25 in
• Total Extended Height: 51.35 in
• Total Extension: 14.5 inches

Specifications:

• Dynamic Lift Capacity Lbs: 1800
• Static Tongue Weight lbs: 7000
• Static Weight Capacity with Footplate Lbs: 7000
• Mounting Type: Pipe
• Item Height Inches: 23
• Item Width Inches: 6
• Item Depth Inches: 8
• Item Net Weight lbs: 23.7
• Warranty: 1 Year Manufacturer's Limited Warranty
• Includes: Jack, Drill attachment, footplate, and hand crank
• Weld-On Only: The JX7-P is not compatible with any existing Trailer Valet mount brackets or bolt-on systems. This product must be welded directly to the trailer frame for proper installation.
