MIDI-Fuse 60A/58V-M6 (Package of 5)
Complete Your Purchase

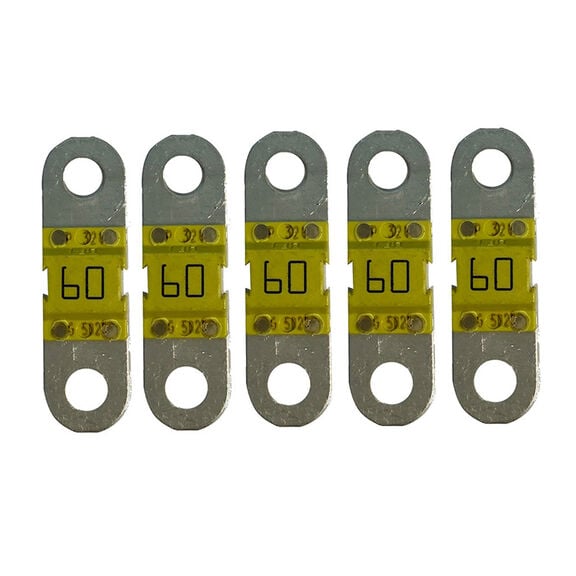

Victron Energy MIDI-Fuse 60A/58V-M6 (Package of 5)
Victron Energy's MIDI fuses are a smaller-footprint alternative to the MEGA fuse series, sharing the same proven design philosophy while fitting in more compact installations. Each fuse in this five-piece pack is rated for a maximum current of 60 amps and a maximum voltage of 58 volts, making them ideal for protecting wiring and components in 48V lithium battery systems, inverter-charger circuits, solar charge controller inputs, and other DC distribution applications.
These fuses are engineered for minimal resistive losses in the circuit, with an approximate voltage drop of just 70 mV under load and a cold resistance of only 0.9 mΩ. The M6 terminal mount allows for secure, high-current connections using standard M6 hardware, and the fuses are compatible with Victron's dedicated MIDI fuse holders, including simple single-fuse holders available for the MIDI format.
Victron Energy offers a comprehensive fuse and fuse-holder ecosystem. Alongside the MIDI range, the lineup includes ANL and MEGA fuses, plus three categories of fuse holders: simple single-fuse holders for each fuse type, a six-way fuse holder for MEGA fuses, and modular single fuse holders for MEGA fuses that can be linked with an optional busbar accessory for efficient multi-fuse installations. For a complete list of compatible parts, refer to the Victron price list. Technical datasheets for the full fuse and fuse-holder range are available for download.
Key Features
- Maximum current rating: 60 amps
- Maximum voltage rating: 58 volts (suitable for 48V systems)
- Approximate voltage drop: 70 mV
- Cold resistance: 0.9 mΩ
- M6 bolt terminal connection
- MIDI form factor — compact alternative to MEGA fuses
- Package includes 5 fuses
- Compatible with Victron MIDI fuse holders
