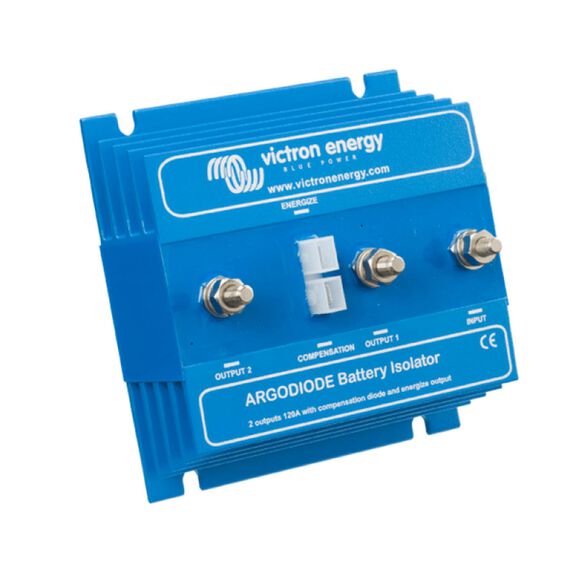

Victron Energy Argodiode 120-2AC 2 batteries 120A

Victron Energy Argodiode 120-2AC 2 batteries 120A

The Victron Energy Argodiode 120-2AC is a diode battery isolator that lets a single alternator charge two battery banks at the same time without connecting them together. It is commonly used to charge a starter battery and a house or accessory battery in boats, RVs, camper vans, work trucks, and overland vehicles. Because the two banks stay isolated, discharging the house battery overnight will not pull down the starter battery. The engine always has power to crank. The Argodiode uses Schottky diodes for low voltage drop: approximately 0.3 V at low current and 0.45 V at rated output. A built-in compensation diode slightly increases alternator output voltage to make up for that drop, so the batteries still receive proper charging voltage. This model also includes an alternator energize input. Some alternators need DC voltage on the B+ output before they start charging, and the energize input supplies it so these alternators operate normally behind the isolator. Specifications: Maximum charge current 120 A. Maximum alternator current 120 A. Number of batteries 2. Dimensions 60 x 120 x 115 mm. Solid state design with no moving parts.

Key Features

• CHARGE TWO BATTERIES FROM ONE ALTERNATOR: Diode battery isolator splits alternator output between two separate battery banks, charging both at the same time while keeping them electrically isolated from each other
• PROTECTS YOUR STARTER BATTERY: Current cannot flow backward between banks, so running lights, a fridge, electronics, or an inverter off the house battery will not drain the starting battery
• LOW VOLTAGE DROP SCHOTTKY DIODES: High-efficiency Schottky diodes lose only about 0.3 V at low current and 0.45 V at rated output, for cooler operation and more complete charging than conventional diode isolators
• COMPENSATION DIODE AND ENERGIZE INPUT: Built-in compensation diode raises alternator output to offset diode drop, and the alternator energize input supports alternators that need DC on the B+ terminal to begin charging
• 120 AMP RATED, COMPACT, SOLID STATE: Handles 120 A charge current and alternators up to 120 A with no moving parts or contacts to wear; measures 60 x 120 x 115 mm for RV, camper van, boat, truck, and overland dual battery systems
