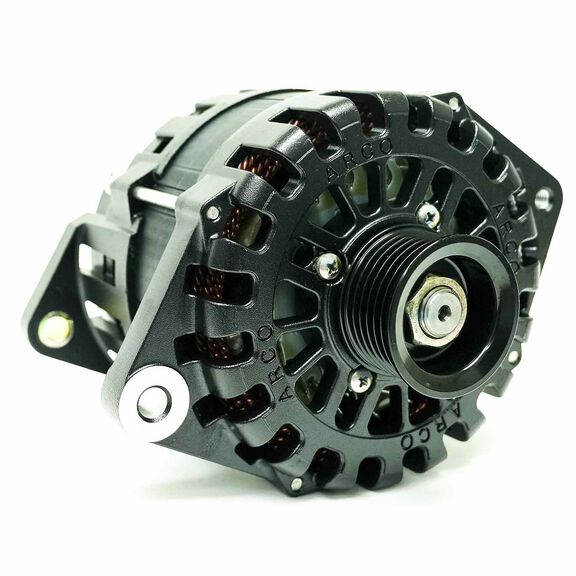

Zeus A7000-24V High Output Alternator

ARCO MARINE Zeus A7000-24V High Output Alternator

High Output / High Amperage Alternator: The Highest Power Output in Its Class
24V 7kW Advantage
The ARCO Zeus A7000-24V alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM, and almost 6kW (218 Amps) at under 6,000 RPM. To put in real world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio is generating over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio is generating over 6kW!
Best-in-Class Performance
The ARCO Zeus A7000-24V alternator turns on for cruising or at mid to higher RPMs, runs cooler and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.
True 24V Alternators
Competitor’s 24V alterilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor’s 24V alternators, having a direct impact on alternator lifespan.
Choose A7000-24V if:
You primarily charge at cruising rpm or on the road
You only charge every other day when moving to a new location
You are willing to trade low RPM output for class-leading output at mid to high RPMs
24 volt high amp alternator power curve
Replace your noisy generator!
Engineered for high energy production.
Suitable for marine, RV, military, and commercial applications.
Rapidly charges large battery banks.
Coolest operating temperatures for increased performance:
Heat shedding coatings
Rectifier located on housing exterior
Dual cooling fans
OEM components
Optimized for performance at idle speeds.
Reduces the need for a generator by creating additional power with your engine.
Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
SAE J1171 Certified.
Proudly assembled in the U.S.A.

Key Features

• 24V 7kW DF315
• Rear Battery Post
• Isolated Ground
• 49mm K6 Pulley
