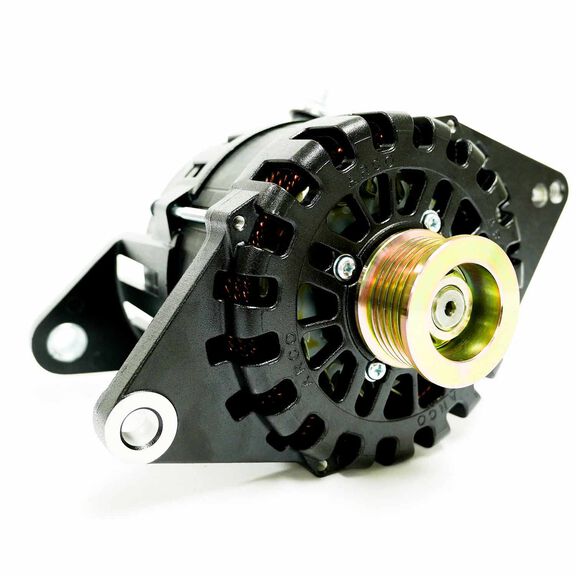

Zeus A8000-48V High Output Alternator, 8kW DF4

ARCO MARINE Zeus A8000-48V High Output Alternator

High Output / High Amperage Alternator: The Highest Power Output in Its Class
A8000-48V Advantage.

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps) 2,500 RPM, and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

True 24V Alternators Instead of using rotors designed for 48 volts, many competitor’s alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitor’s 48V alternators, having a direct impact on the alternator’s lifespan. 48 volt high amp alternator power curve.

Replace your noisy generator!
Engineered for high energy production.
Suitable for marine, RV, military, and commercial applications.
Rapidly charges large battery banks.
Coolest operating temperatures for increased performance:
Heat shedding coatings
Rectifier located on housing exterior
Dual cooling fans
OEM components
Optimized for performance at idle speeds.
Reduces the need for a generator by creating additional power with your engine.
Unleash peak performance with E-Coat, keeping the high amp alternator cooler for sustained amperage output.
For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
SAE J1171 Certified.
Proudly assembled in the U.S.A.

Key Features

• 48V 8kW DF4
• Side Battery Post
• Externally regulated
• Isolated ground
• 49mm K6 Pulley
