Anti-Siphon Tank Vent
Anti-Siphon Tank Vent
-
In Stock
Vendor Shipping Details
This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.
Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.
West Marine will email you when your order ships from the vendor.
Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.
Hazard shipping

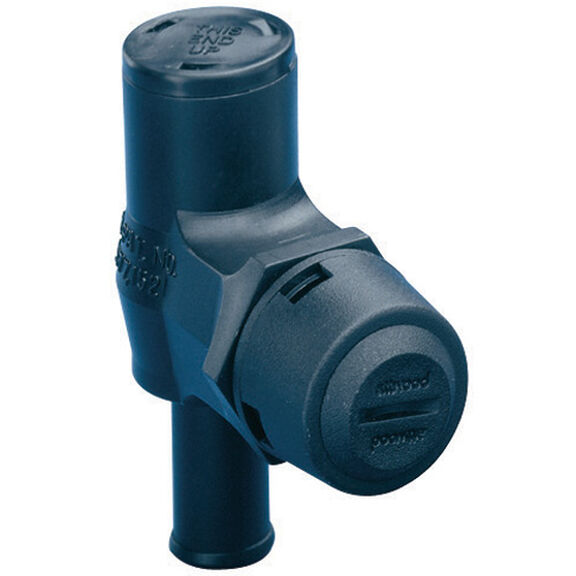

A fuel vent with added baffles to prevent sea and washdown water from entering the fuel system.
Attwood tank vents feature a unique baffle system to eliminate the introduction of sea and washdown water into the fuel system while allowing air to pass freely. This 90° fitting mounts in hulls up to 9/16" thick and provides more direct hose routing to the tank. Ideal for vents installed in coamings or other space limited locations. These vents feature a removable cover that stands 1" off the mounted surface and allows inspection and removal of debris. The cover can also be removed for system pressure tests. Installation requires an additional 1 1/2" above the vent to accommodate the anti-siphon valve. To keep unwanted water out of the fuel system, look to Attwood P-Trap Vents for the solution.
Key Features
- Keeps water out of fuel system
- Provide fuel system venting
- Removable cover allows inspection and debris removal
- Cover can be removed for pressure testing procedures
- Prevents the need to install anti-siphon loop in vent hose
- Will not meet EPA certified system requirements
- Two-year warranty
Specifications
- Hose Size: 5/8"
- Maximum Hull Thickness: 9/16"
- Approvals: ABYC H-24
