Remote Operated Motorized Battery Switches

A compact remotely operated battery switch that adds convenience.

Installation of a remote switch has two benefits: it puts the control of the switch right on the dash or nav-station and it shortens heavy cable runs by putting the switching mechanism close to the battery. They are ideal for bow and stern thruster dedicated batteries located in hard to access lockers.

Marinco 701MD and 720MDO switches are ignition protected and can be installed the engine room of gasoline powered boats. The 701MD shares the same tiny footprint (2 ¾" x 2 ¾") of other 700 series switches and will fit almost anywhere. Removable side plates on four sides allow easy access for up to 1/0 cables. A rear cover insulates rear terminals against possible short circuits. This ensures the switch meets ABYC requirements. Both can be either surface or recess mounted.

Key Features

• Super compact design allows installation in limited space applications.
• Mounts close the batteries to reduce expense and weight of heavy cable runs
• Two mounting options
• Corrosion resistant high temperature fiber reinforced plastic body designed to stand up to marine environment
• Manual knob provides control with power to switch is unavailable; compliant with ABYC standard
• Removable knob adds a level of security and offers a service lockout feature
• 720MDO offers ability to control different voltage circuits and can switch positive or negative lines
• Tinned copper terminal studs offer excellent conductivity and corrosion resistance
• Meets UL 1107 ignition protection standards; can be installed in engine
• Two-year warranty

Specifications 701 MD

• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 32V
• Continuous Rating: 275A
• Intermittent Rating (duration): 455A (5min)
• Cranking Rating (15Sec): 1250A
• Battery Inputs: 1
• Cable Size to meet ratings: 1/0 AWG
• Mounting Holes: #10
• Terminal Stud size: 3/8”
• Dimensions: 2 ¾" x 2 ¾" x 4"

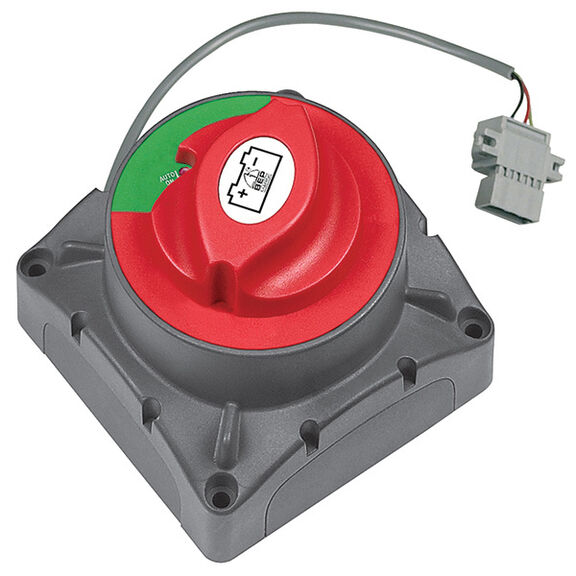

Specifications 720MDO

• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 32V
• Continuous Rating: 500A
• Intermittent Rating (duration): 700A (5min)
• Cranking Rating (15Sec): 2500A
• Battery Inputs: 1
• Cable Size to meet ratings: 1/0 AWG
• Mounting Holes: #10
• Terminal Stud size: 3/8”
• Dimensions: 4" x 4" x 4 3/8"
