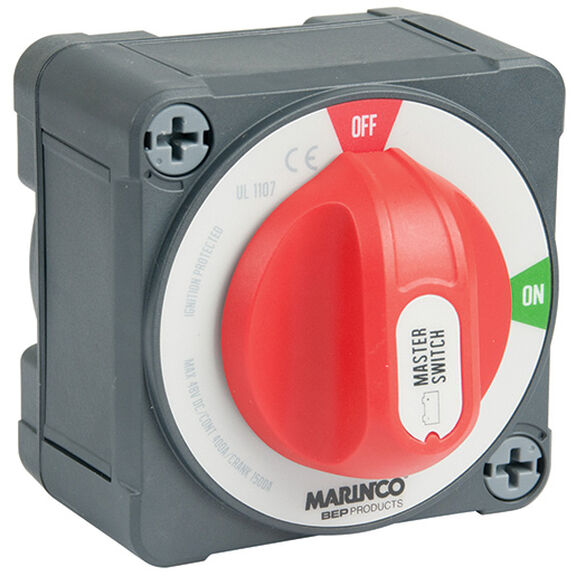

EZ-Mount Pro Installer Off/On Battery Switch

EZ-Mount Pro Installer Off/On Battery Switch

3.7 out of 5 Customer Rating
-
+
Availability
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

$63.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 14981658 Mfg # 770-EZ
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

Installing a battery switch just got easier

BEP/Marinco Pro Installer series components are designed to reduce installation times by making it easier. These revolutionary battery switches allow you to wire from the front. Simply remove the cover, mount the backing plate, run the wires, and then snap the cover and actuator back in place. Never has installation been so easy; battling stiff battery cables while trying to mount the switch has been eliminated. These high quality, durable switches accept large cables with multiple lugs, and feature intuitive, ergonomic switch positioning and clear graphics to indicate switch position.

The EZ-Mount switches have a compact, industry standard footprint and the shared interconnection height to “cluster” directly with other Pro Installer products, saving valuable onboard space while speeding up the installation process. They meet rigorous global standards and are constructed for longevity in the marine environment.

Key Features

  • Revolutionary wire from the front design makes installation faster and easier
  • Corrosion resistant fiber reinforced plastic designed to stand up to marine environment
  • Shares same interconnection height with other Pro Installer products for use with link bars: eliminating time spent fabricating and struggling with short jumper cables
  • Interconnection with other Pro Installer products reduces overall footprint of the system
  • Removable knob adds a level of security and offers a service lockout feature
  • Tinned copper terminal studs offer excellent conductivity and corrosion resistance
  • Ignition protected; can be installed in engine rooms of gasoline powered boats
  • IP66 rated; can withstand powerful water jets
  • Five-year warranty

Specifications

  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 48V
  • Continuous Rating: 400A
  • Intermittent Rating (duration): 600A (5min)
  • Cranking Rating (15Sec): 1500A
  • Battery Inputs: 1
  • Cable Size to meet ratings: 1/0 AWG
  • Mounting Holes: #10
  • Terminal Stud size: 3/8”
  • Dimensions: 3 7/8"W x 3 7/8"H x 3 5/8"D

Instructions

Amperage 400 Amps
Cold Cranking Amps 1500 Amps
Color Red
Dimensions 3 7/8" Width x 3 7/8" Length x 3 5/8" Height
ISO Approved UL1107 Ignition Protection
Type On/Off Switches
Voltage 6/12/24/36 Volts Systems
Warranty Five Years
