e-Series 350A Compact Battery Switches
Complete Your Purchase
A compact battery switch that offers multiple installation options and is full of features.
Blue Sea Systems e-Series battery switches can be installed in a variety of locations. Their compact footprint and two mounting options make installation easy. They are ignition protected and can be located in the engine rooms of gasoline powered boats. Some models feature an alternator field disconnect to protect the alternator diodes from damage if the switch is accidently turned to the OFF position while the engine is running.
The tactile texture of the switch face and knob allow operation by feel in low or no light situations. Choose between 2 or 4 positions to match the needs of your boat. The one piece tin-plated copper terminal studs are long enough to accept multiple cables and will accept the torque required to create a secure connection that minimizes resistance.
Key Features
- Compact design makes installation in tight places easy

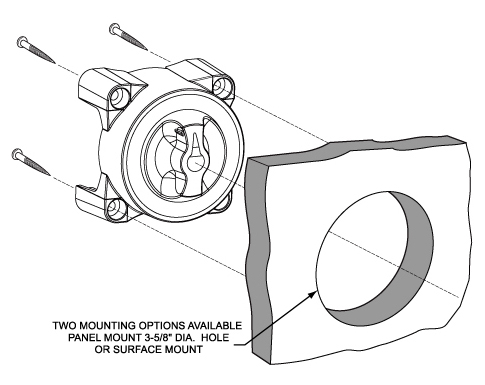

- Multiple mounting options; can be installed on the surface or rear of the panel
- Available in 2 or 4 position models for single or dual battery bank (with a combining feature) applications
- Available with alternator field disconnect to protect the diode in the alternator in the event that the switched is turned to the OFF position while the engine is running (9002e and 9004e only)
- Ignition protected and can be mounted in the engine room of gasoline powered boats
- One Piece Copper studs are 7/8" long and accept multiple cables
- Tactile textures on face let operate the switch in low or no light
- Compatible hole pattern and face diameter with Perko and Guest low –amperage battery switches
- Included snap-out isolator covers and labels included
- Lifetime warranty
Specifications
- Switch Positions: 2 or 4
- Battery Combine: 9004e only
- Alternator Field Disconnect: No (9003e); Yes (9002e, 9004e)
- Maximum Voltage: 32V
- Continuous Rating: 350A
- Intermittent Rating (duration): 600A (5min)
- Cranking Rating (30 sec.): 1200A
- Battery Inputs: 2 (9002e), 1(9003e, 9004e)
- Cable Size to meet ratings: 4/0 AWG
- Mounting Holes: 1/4"
- Terminal Stud size: 3/8”
- Dimensions: 3 5/8"L x 3 5/8"W x 2 3/8"H
- Weight: 3 Lbs.
