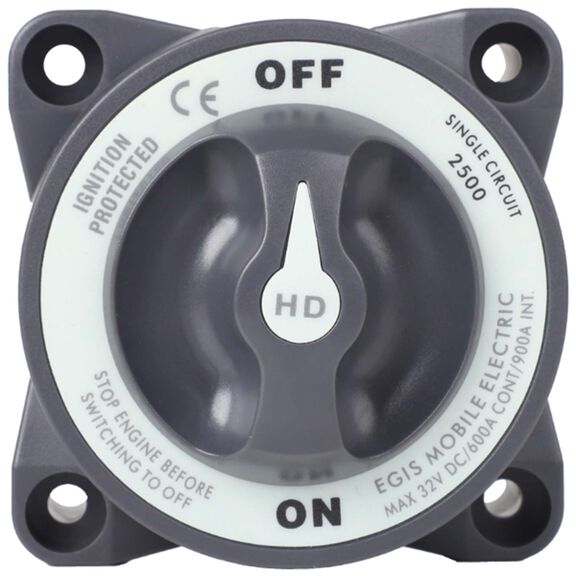

EGIS MOBILE ELECTRIC Heavy Duty-Series 600A Battery Switch
Isolate and connect high-amperage loads with convenient surface- and rear-panel mounting options. The easy-to-turn knob provides a firm grip for selection. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. Directly replaces legacy OEM products.
Key Features
- Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments
- Ignition Protected Safe for installation in closed compartments with potential explosive gases
- Harsh Environment Design with stainless-steel hardware, serrated flange nuts, and high-temperature materials
- Maximum Voltage: 32 Vdc
- Stud Size And Thread: M12-2.75
- Terminal Stud Torque: 220 in-lbs (24.9 N-m)
- Ring Terminal Size Acceptance: 1/2" (M12)
- Mounting Holes: 1/4" (M6) Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 3-5/8"
- Cable Size to Meet Rating: 2x 4/0 AWG per side (4x Total)
- Amperage Rating 30sec / 5min / Continuous: 1750 / 900 / 600 Amps
Compatibility
REPLACES BLUE SEA SYSTEMS #3000
