Analog Ammeters
Model #
320335
Mfg #
8005
$60.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Select a Product:

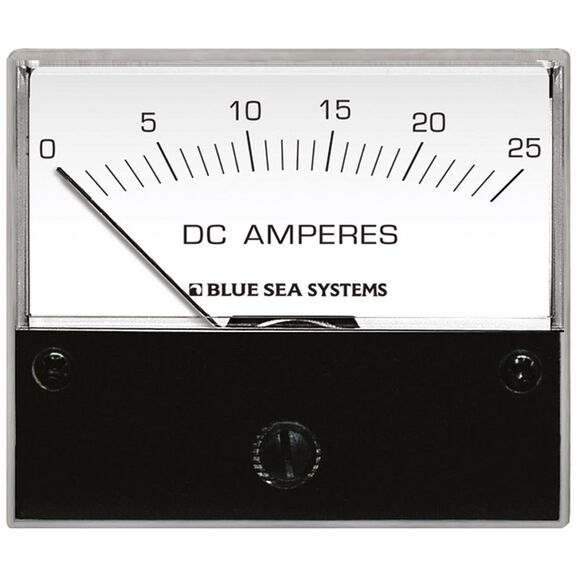

0-25A DC Ammeter with Internal Shunt
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
BLUE SEA SYSTEMS Analog Ammeters
9630 Features:
- Simple 2-wire connection
- Meter senses and powers from coil slipped over wire to be measured
- Includes AC current transformer
8017 Features:
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes DC shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
8022 Features:
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes DC shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
8005 Features:
- Simple 4-wire connection
- Internal Shunt
- Backlit meter face (separate 12 or 24V DC backlight connections)
| Specifications | 8005 | 8017 | 8018 | 8022 |
|---|---|---|---|---|
| AC DC | DC | DC | DC | DC |
| Meter | Current | Current | Current | Current |
| Face Size | 2 3/4" | 2 3/4" | 2 3/4" | 2 3/4" |
| Function | 0 to 25A | 0 to 100A | 0 to 150A | 0 to 50A |
| Backlighting Amperage | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC |
| Meter Current | 1mA at full scale | 1mA at full scale | 1mA at full scale | 1mA at full scale |
| Shunt Type | Internal | External 50mV@full scale | External 50mV@full scale | External |
| Specifications | 8038 | 8254 | 8258 | 9630 |
|---|---|---|---|---|
| AC DC | DC | DC | AC | AC |
| Meter | Current | Current | Current | Current |
| Face Size | 2" | 2" | 2 3/4" | 2 3/4" |
| Function | 0 to 15A | 50 to 50A | 0 to 100A | 0 to 50A |
| Backlighting Amperage | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC |
| Meter Current | 1mA at full scale | 1mA at full scale | 50mA AC at full scale | 50mA AC at full scale |
| Shunt Type | Internal | External 50mV@full scale | Internal 50mA AC at full scale | External AC current transformer 50A |
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Best Use
12 Volt DC Systems
,
24 Volt DC Systems
Dimensions
2 3/4" Face Size
Display Type
Analog; 0 to 25 Volts
Features
Ammeter
Type
DCM Ammeter
Warranty
Five Years
