DC Analog Voltmeter Panel, 8-16V DC
Complete Your Purchase
Monitor and maintain three battery banks with a dedicated voltmeter
The lifespan of a battery bank is dependent on how it has been treated. Discharging a bank below manufacturer’s recommended levels or leaving a battery discharged for long periods of time can shorten its life. Voltmeters provide boaters with the critical information they need to maintain and maximize battery life. Blue Sea Systems offers two pre-mounted voltmeters aimed at three battery bank systems. A three position selector switch chooses the bank to be monitored. The gray aluminum mounting plate will look at home next to larger industry standard Blue Sea Systems panels in the nav-station or at the helm. Analog meters provide an LED for use in low or no light situations.
Key Features
- Pre-mounted on industry standard panel; matches many existing panels
- Pre-wired three position selector switch to choose battery bank to be monitored
- Easy to read display
- Lifetime warranty
Specifications: Analog Meter
- Meter: Voltage
- Face Size: 2 3/4"
- Function: 8-16V

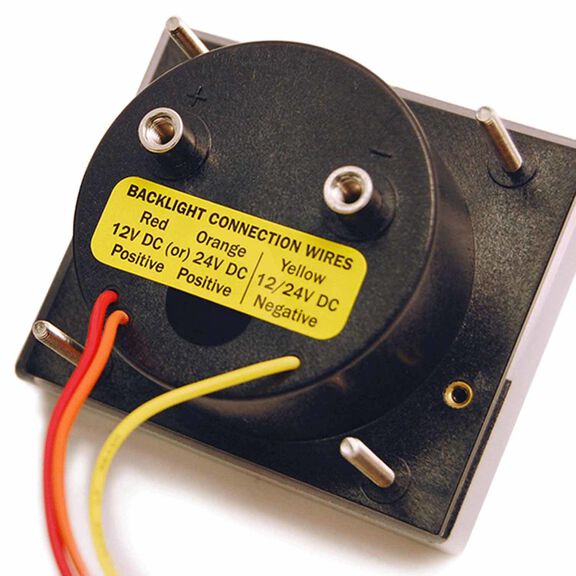

- Backlighting Amperage: 16mA @ 12V DC, 20mA@24V DC
- Meter Current: 1mA at full scale
- Dimensions: 3 3/4"H X 5 1/4"W
