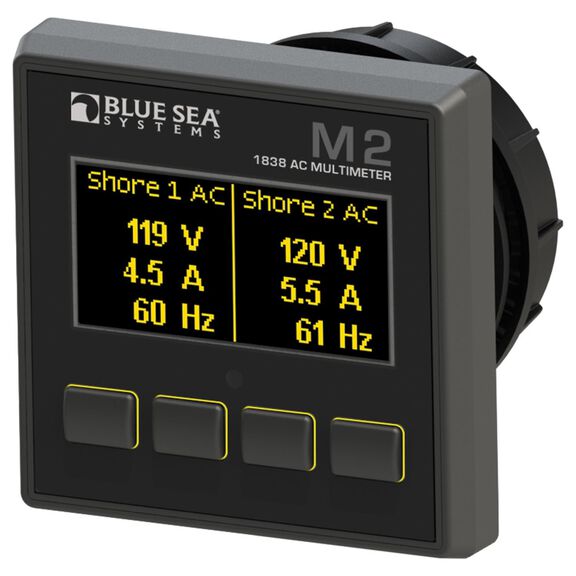

M2 AC Multimeter
Model #
16016131
Mfg #
1838
$370.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Monitors voltage, current, frequency, and power on two circuits or both legs of 120/240V.
Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures two voltages and two circuits).
With the built-in MOSFET External Circuit Relay, you can also use it to control external circuits based on any value measured by the M2. Bright OLED display is auto-dimming and easy to read with high resolution and sharper contrast compared to traditional LED displays. Programmable 92dB alarm. Waterproof to IP66 standard.
Specifications
- Displays and Monitors: Current, Frequency, Power, Voltage
- Functions: 50 to 250V, to 300A
- Resolution: 1V AC
- Alarms: High Current, High/Low Frequency, High/Low Voltage
- Current Accuracy: ± 2.0%
- Frequency Range: 40-90Hz
- Frequency Resolution: 1Hz
- Input Voltage: 7-70V DC
- Max. Power Consumption: Less than 1.00W
- Min. Power Consumption: 0.3W
- Power Range: 0-45kW
- Power Resolution: 10W (0-9990W), 0.1kW (10-45kW)
- Voltage Accuracy: ± 2.0%
- Display Type: OLED
- Display Size: 1 3/16"H (28mm) x 2 1/4"W (55mm)
- Meter Case: Glass-reinforced nylon
- Dimensions: 3 1/16"H (78mm) x 3 1/16"W (78mm) x 17/32"D (14.05mm)
- Mounting Hole Size: 2 1/8"dia. x up to 1"D
- Fastners: None required
- Lighting: Auto-dimming, bright OLED
- Waterproof Rating: IP66 (Gasketed face)
- Weight: 0.25lb. (0.11kg)
- Warranty: Three years
Quick Start Installation Guide
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Best Use
120V AC Systems
,
240V AC Systems
Dimensions
3 1/16"H (78mm) x 3 1/16"W (78mm) x 17/32"D (14.05mm)
Display Type
Digital
,
Current
,
Frequency
,
Power
,
Voltage
Type
Multi-Function Monitor
Warranty
Three Years
