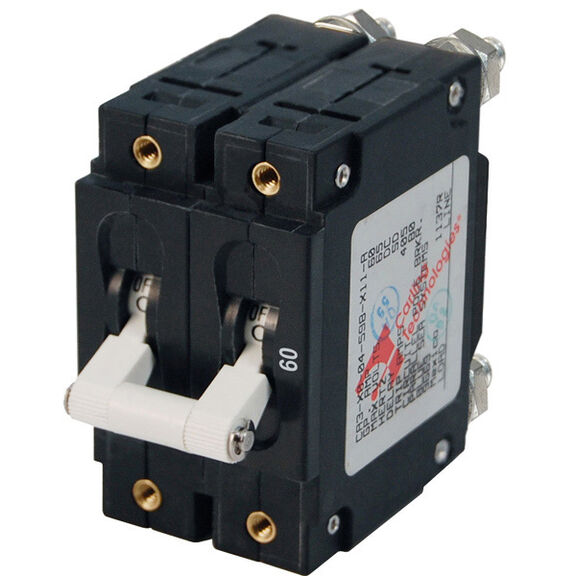

C-Series Double Pole White Toggle Circuit Breakers
Complete Your Purchase
Industry standard AC and DC circuit protection with stud terminals.
It is inevitable that breakers will have to be changed to meet the demands of existing or changing electrical loads. Blue Sea Systems makes it simple. The C-Series circuit breakers combine circuit protection and switching in a toggle switch designed to fit Blue Sea Systems panels. These breakers are capable of handling short start-up current surges found in electric motors and other appliances without tripping. For added safety, a Trip-Free feature prevents the toggle from being held in the ON position when a fault is detected. A trip will occur if a fault is detected on any of the poles. These double and triple pole breakers are ideal for a windlass, inverter, stern or bow thruster, or other high amperage loads.
Key Features
- Available in AC circuit or DC circuit compatible styles
- Combine switching and circuit protection into single toggle switch
- Industry standard and compatible with Blue Sea Systems electrical panels for simple change
- Trip-Free feature means switch cannot be held in ON position when a fault is detected
- Magnetic-hydraulic delay trip mechanism recognizes surges caused by start-up currents and will not trip
- Improved ability to interrupt higher current without failure
- Lifetime warranty
Specifications
- Amperage: 50A-100A AC, 50A-300A DC
- Number of Poles: 2
- Maximum Voltage: 240V AC, 65V DC
- Circuit Breaker Type; Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A @ 240V AC, 5000A @ 65V DC
- Mounting Screw: #6-32 Stainless steel
- Terminal Stud: 1/4-20 Tin-Plated Brass
