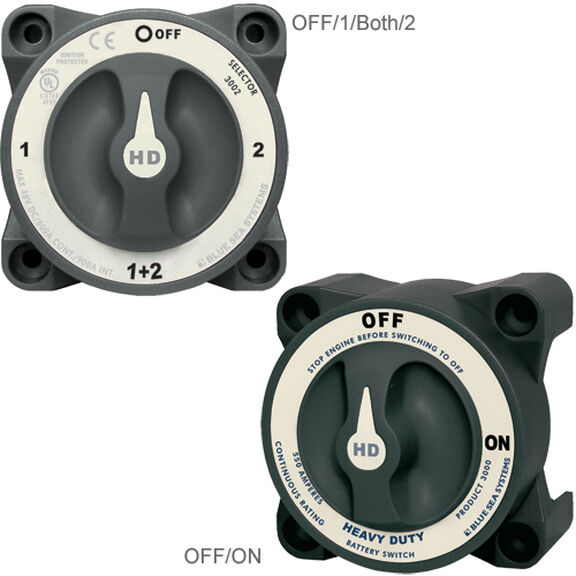

A compact battery switch capable of handling up to 600 Amps

Blue Sea Systems heavy duty battery switches have a compact footprint, but carry incredible electrical loads. Built on the same chassis as the e-Series switches they can be easily installed in a variety of locations. The Heavy-Duty series are ignition protected and can be located in the engine rooms of gasoline powered boats.

A make before break feature allows switching between banks without interrupting current flow. The tactile texture of the switch face and knob allow operation by feel in low or no light situations. One piece tin-plated copper terminal studs are long enough to accept multiple cables and will accept the torque required to create a secure connection that minimizes resistance. The Heavy Duty series switches are designed to carry high loads and fit in small places.

Key Features

  • Compact design makes installation in tight places easy
  • Multiple mounting options; can be installed on the surface or rear of the panel
  • Ignition protected and can be mounted in the engine room of gasoline powered boats
  • One Piece Copper studs are 7/8”long and accept multiple cables
  • Tactile textures on face let operate the switch in low or no light
  • Compatible hole pattern and face diameter with Perko and Guest low –amperage battery switches
  • Included snap-out isolator covers and labels included
  • Lifetime warranty

Specifications 3000

  • Switch Positions: 2-4
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V
  • Continuous Rating: 600A
  • Intermittent Rating (5 min): 900A
  • Cranking Rating (30Sec): 1700A
  • Battery Inputs: 1
  • Cable Size to meet ratings: 4/0 AWG
  • Mounting Holes: ¼”
  • Terminal Stud size: 1/2”
  • Dimensions: 3.85 ”L x 3.85”W x 3.097” D
  • Weight:1.3lb

Specifications 3002

  • Switch Positions: 4
  • Battery Combine: Yes
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V
  • Continuous Rating: 500A
  • Intermittent Rating (5 min): 700A
  • Cranking Rating (30Sec): 1600A
  • Battery Inputs: 2
  • Cable Size to meet ratings: 4/0 AWG
  • Mounting Holes: ¼”
  • Terminal Stud size: 1/2”
  • Dimensions: 3.85 ”L x 3.85”W x 3.097” D
  • Weight:1.25lb
