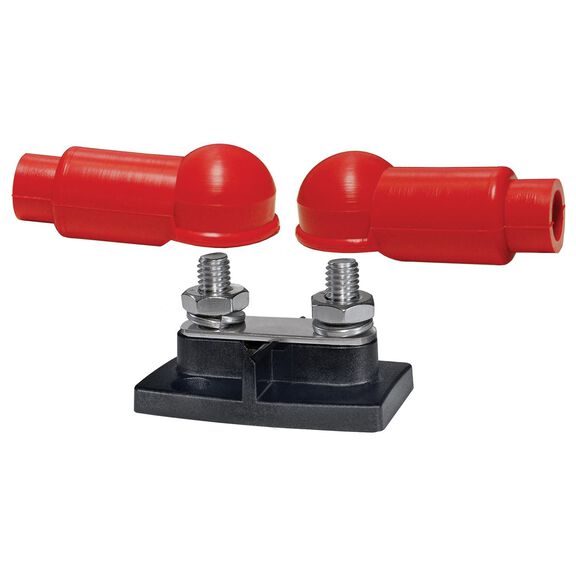

PowerBar Dual Bus Bar 200A, w/Insulator Covers
3.1 out of 5 Customer Rating
Model # 10093797 Mfg # 2019
Model # 10093797 Mfg # 2019
Quantity not available. Please adjust.
Temporarily Out of Stock
Email Icon
Thank you! We'll let you know when it's back in stock.
-
+

Compact heavy duty bus bar for high amperage applications.

If your installation is tight on space but requires a high amperage bus bar, look no further than the PowerBar from Blue Sea Systems. These two-stud buses can handle up to 200A. Designed for heavier cables, these bus bars are ideal for windlass, davits, and other high current circuits. 3/8" studs provide a solid anchor and will accept the torque required to create the best possible connection. Two 1/4" mounting holes secure the base and make attaching larger cables easy.

 Key Features

  • Rated for 200A; for use as a main DC negative or positive on larger boats
  • 3/8" stainless steel terminal studs support larger cables and handle the torque for the best contact
  • Lexan® polycarbonate base
  • 1/4" mounting holes that secure bus bar and support larger cabling
  • Available insulating cover protects terminal studs from accidental contact and cross current shorts satisfies USCG and ABYC requirements for insulation.
  • Lifetime warranty

Specifications

  • Maximum Voltage: 48V
  • Continuous Rating: 200A
  • of terminal studs: 2
  • Terminal Stud Size: 3/8"
  • Terminal Screw Size: N/A
  • Mounting Fasteners: #10 screws
  • Base material: Reinforced Lexan® Polycarbonate
  • Material: Tin-plated copper CDA 110/UNS 1000,
  • Dimensions: 2 3/4"L x 1 4/8" W x 1 5/8" H

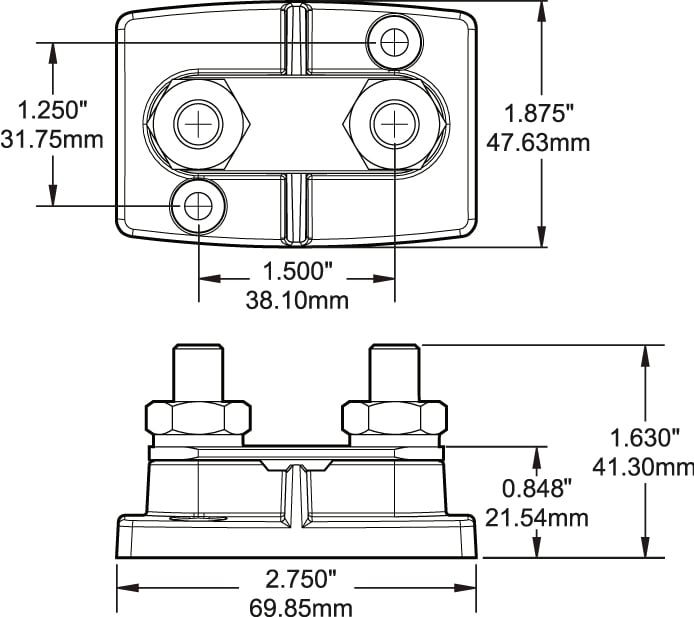

Dimensional Drawing

Capacity AC: 545 Amps at 300 Volts , DC: 600 Amps at 48 Volts
Dimensions 2 3/4" Length x 1 7/8" Width
Mounting Hardware Four 1/4" Round Head Screws (Sold Separately)
Type Bus Bars
Warranty Lifetime
