Water-Resistant DC Fuse Panels
Complete Your Purchase
Ideal for flybridge or open cockpit applications

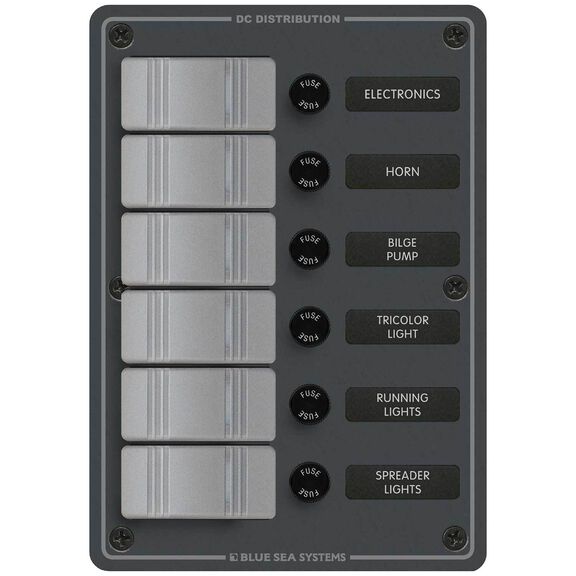

Blue Sea Systems water resistant panels are made to be exposed to the elements; including saltwater spray and washdowns. An included gasket seals the panel and protects areas behind the dash from water intrusion. These panels feature modern Contura rocker switches and look at home on almost any boat. LED lights behind each switch indicate it is ON. Each switch has a corresponding AGC (standard glass fuse) fuse that is easily accessible through a sealed cap. These pre-wired panels are available in 3, 4, 6, and 8 position panels; there is one to fit, most applications and provide an extra switch for expansion. Included 60 label set makes organizing the switches a breeze.
Key Features
- Water resistant Contura rocker switches stand up to saltwater spray, rain and hose spray
- Panel seals against mounting surface to prevent water intrusion with included gasket
- Available in 3, 4, 6, and 8 switch/fuse configurations to match application
- Easily accessible fuses through face mounted sealed cap
- Includes 60 label set to organize switches
- Lifetime warranty
Specifications
- Waterproof: Water resistant
- Positions: 3, 4,6, and 8
- Voltage: 12V
- Panel Cumulative Rating: 45A, 90A (8 position)
- Switch Rating: 20A @12V, 15A @ 24V
- Approvals: CE, IP66
- Dimensions 8053: 7 ½"H x 5 ¼"W x 3"D
- Dimensions 8054: 3 3/4"H x 5 1/4"W x 3"D
- Dimensions 8261: 3 ¾"H x 9 3/8"W x 3"D
- Dimensions 8262: 3 3/4"H x 5 1/4"W x 3"D
