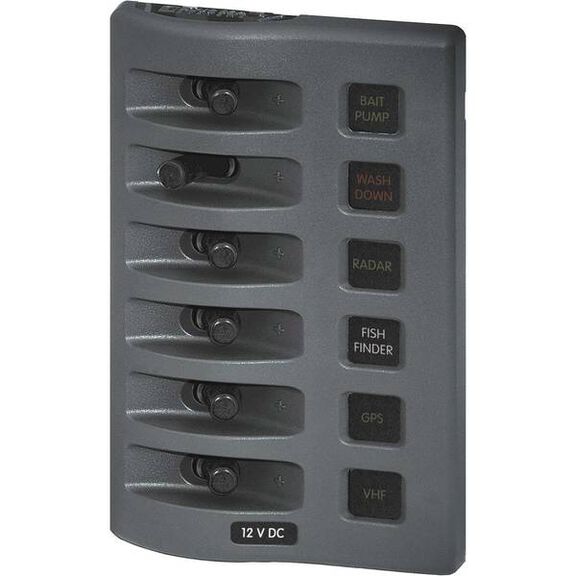

WeatherDeck® Waterproof Fuse Panel, Six-Position

WeatherDeck® Waterproof Fuse Panel, Six-Position image number null
WeatherDeck® Waterproof Fuse Panel, Six-Position image number null

WeatherDeck® Waterproof Fuse Panel, Six-Position

5 out of 5 Customer Rating
-
+
Availability
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

$18.44
$23.49
$149.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 6841100 Mfg # 4336
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

A panel that’s built to last and looks great. Ideal for flybridge and open cockpit installations

WeatherDeck® 12V waterproof panels are ready to take on the harshest of environments. They can be oriented in any of four different ways to expand your mounting location options. Included square circuit labels are designed to be placed above or below in the horizontal configuration, and to the right or left in the vertical. Rugged UV stabilized waterproof boots. All panels use ATO/ATC blade fuses. The bi-colored LEDs illuminate circuit labels to quickly reveal OFF, ON, or Blown circuits. Includes a set of common DC labels and a replacement fuse kit—a West Marine exclusive. Panels come loaded with 15A ATC fuses.

Key Features

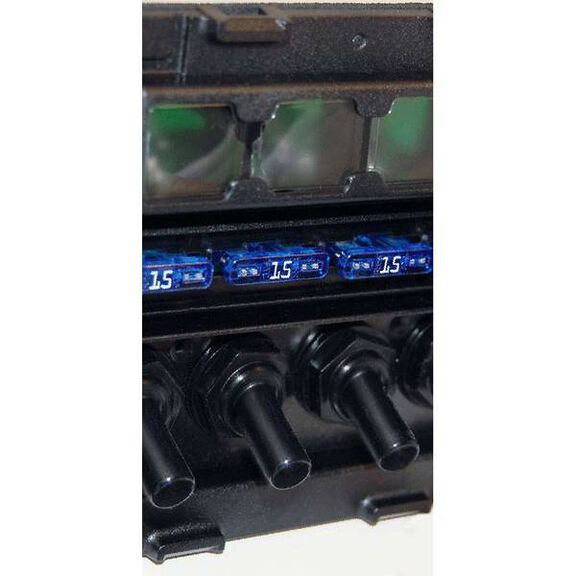

  • Integrated ATO/ATC fuses (six 15amp fuses included)
  • Rated IP67 from the face when installed with supplied gasket
  • IP67 rated for immersion in 1 meter for 30 minutes
  • Ideal for flybridge and open cockpit applications
  • Backlit labels (included)
  • Colored LED lights indicate ON, OFF and blown fuses
  • Lifetime warranty

Specifications

  • Weatherproof: Rated IP67 waterproof
  • Positions: 6
  • Voltage: 12
  • Panel Cumulative Rating: 90A
  • Switch Rating: 15A @12V
  • Approvals: CE, IP67
  • Dimensions: 6"H x 3 7/8" x 2 1/2"D

Fuses

Instructions

Navigation Light Diode Diagram

Cutout Template

Switch Quantity Above Deck
Type 90 Amps
Warranty Lifetime Warranty
