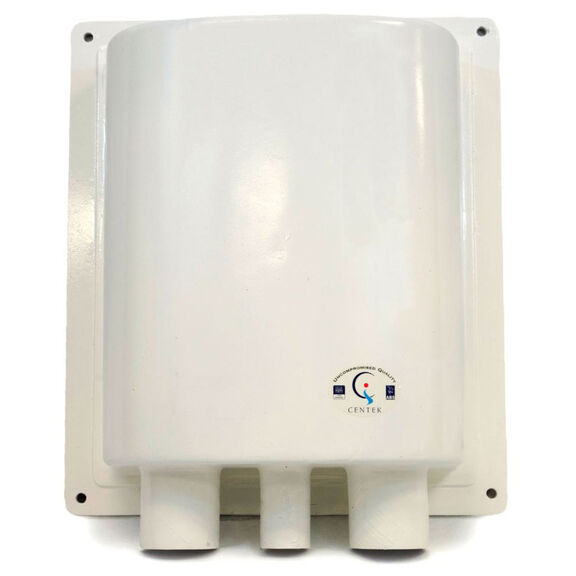

Gen-Sep Water Separators
Complete Your Purchase
Gen-Sep™ Water Separators help quiet exhaust for a more pleasant boating experience.
"Belching" exhaust mixed with cooling water is a characteric of many marine exhaust systems. Gen-Sep Water Separators eliminate this phenomena by removing nearly all the cooling water from the exhaust. Gen-Sep Water Separator installations replace the exhaust hose loop after the muffler at the highest point in the system. Once separated, exhaust cooling water is drained out via a thru-hull fitting below the wateline—thus eliminating excess noise often created by splashing and pulsating water flow at the exhaust outlet. Construction features corrosion-resistant, high-temperature resin and E-Glass.
Key Features
- Heat-resistant materials stand up to hot wet exhaust
- Corrosion-resistant materials ensure long component life
- Fiberglass material not suseptible to galvanic corrosion
Specifications
- Application: Inboard gas or diesel engines or generators
- Construction: Filament Winding CNC, Resin Transfer Molding
- Type of Resin: Class 1, Fire Retardant Epoxy Vinyl Ester Thermoset
- Glass: Corrosion-resistant E-Glass
- Glass/Resin Ratio: 60%
- Color: White
- Approvals: LLoyd's Register Type Approval
- Flame Retardancy: UL9V-0
Port Sizes
| CENTEK # | Exhaust Inlet Port Dia. (OD) | Exhaust Outlet Port Dia. (OD) | Water Drain Port Dia. (OD) | Model |
|---|---|---|---|---|
| 1020150 | 1 1/2" | 1 1/2" | 1 1/4" | 2639532 |
| 1020200 | 2" | 2" | 1 1/2" | 2639607 |
Installation
For installation, see the Gen-Sep Product Installation Guidelines.
More Information
For dimensions and other information, see the Gen-Sep 1020150 and/or the Gen-Sep 1020200 data sheet.
