CENTEK

MiniMax Muffler - 4" I/O dia x 8.38" Overall dia x 16.75" Length

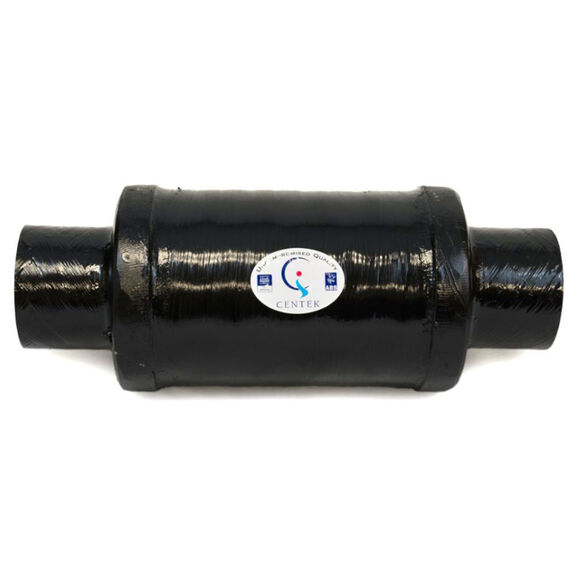

MiniMax Muffler - 4" I/O dia x 8.38" Overall dia x 16.75" Length image number 0
CENTEK
MiniMax Muffler - 4" I/O dia x 8.38" Overall dia x 16.75" Length
3.4 out of 5 Customer Rating
Model # 3683232 Mfg # 1050400
Model # 3683232 Mfg # 1050400
Quantity not available. Please adjust.
Temporarily Out of Stock
Email Icon
Thank you! We'll let you know when it's back in stock.
-
+

Made of heat- and corrosion-resistant materials, Mini-Max mufflers deliver long life in the marine environment.

Centek fiberglass mufflers are made from corrosion-resistant, high-temperature resin and E-Glass. Mini-Max Mufflers are smaller than Vernatone mufflers, which makes them a good choice for smaller craft with V-drives and/or limited space for installation. Mini-Max mufflers create a minimum of back pressure and are rated "Fair" by Centek for noise reduction. For above-the-waterline installation only.

Key Features

  • Heat-resistant materials stand up to hot wet exhaust
  • Corrosion-resistant materials ensure long component life
  • Fiberglass material not suseptible to galvanic corrosion

Specifications

  • Application: Boats with V-drives and/or space contraints
  • Construction: Filament Winding CNC, Resin Transfer Molding
  • Type of Resin: Class 1, Fire Retardant Epoxy Vinyl Ester Thermoset
  • Glass: Corrosion-resistant E-Glass
  • Glass/Resin Ratio: 60%
  • Color: White
  • Approvals: LLoyd's Register Type Approval
  • Flame Retardancy: UL9V-0

Installation

See the Vernatone Installation Guidelines.

Compatibility Wet Exhaust Systems, V Drives & Space Constraints, Gas/Diesel Engines
Dimensions 3" Inlet x 3" Outlet x 16.75" Length
Material Fiberglass
Type Inline Mufflers
