BayStar Seal Kit With Glands ORB for -3 Cylinders

Dometic BayStar Seal Kit With Glands ORB for -3 Cylinders

The Dometic BayStar HP4601 is an OEM end gland seal kit engineered to restore the performance and reliability of BayStar front mount outboard hydraulic steering cylinders. Designed specifically for cylinders using ORB (O-Ring Boss) -3 hydraulic fittings, this comprehensive service kit supplies every component needed for a complete end gland rebuild, eliminating fluid leaks and maintaining precise, responsive steering control. For NPT-threaded cylinder variants (models ending in "H"), use HP4600 instead.

Compatible cylinder models include HC4645-3, HC4647-3, HC4648-3, and HC4658-3. The system is rated to a maximum of 150 HP total and must be used exclusively with SeaStar Steering Fluid — never brake fluid or ATF. When servicing in salt water environments, the optional cylinder ground strap kit (HA5477) is recommended. All old screws must be discarded; the HP4601 includes new stainless steel socket head cap screws for secure reassembly. The internal center seal is not included in this kit.

Installation follows a straightforward procedure using common hand tools and the included seal guide: steer to hard-over toward the gland being serviced to minimize fluid loss, remove and mark steering lines, loosen socket cap screws, slide off the old gland, install the new gland using the seal guide, install new screws, reassemble rod hardware, then bleed the steering system per standard BayStar instructions. Use good-quality marine grease during reassembly.

Manufactured in Richmond, B.C., Canada by Dometic (formerly Teleflex/SeaStar Solutions), this kit meets ISO 10592 and CE certification standards and is backed by a 2-year limited warranty from date of original retail purchase (1 year for commercial or rental use).

Key Features

• Complete end gland replacement kit for ORB -3 BayStar outboard steering cylinders
• Compatible with HC4645-3, HC4647-3, HC4648-3, and HC4658-3

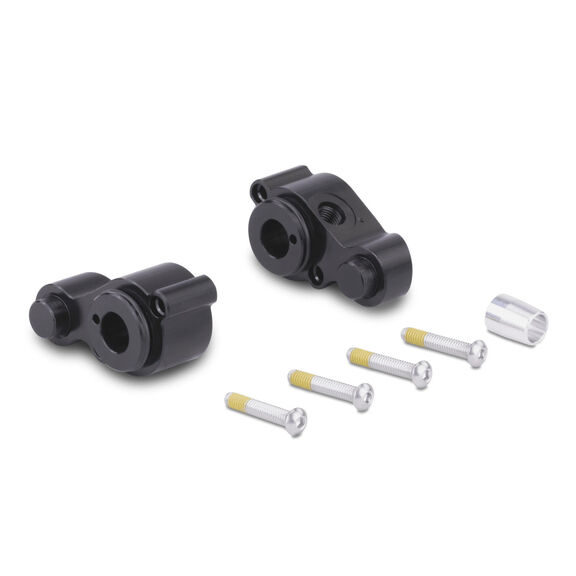

• Includes port and starboard end glands, 2 shaft seals, 2 wipers, 2 O-rings, 4 BHCS 1/4" NC x 1.5" SS cap screws, seal guide, and instruction sheet
• Rated for systems up to 150 HP total
• New stainless steel hardware included — old screws must be discarded
• OEM-grade components meet or exceed manufacturer specifications
• ISO 10592 and CE certified
• Manufactured in Canada
• 2-year limited warranty
• Does not include internal center seal
