HF4203 BayStar Horizontal Bleeder Tee Kit

Dometic HF4203 BayStar Horizontal Bleeder Tee Kit

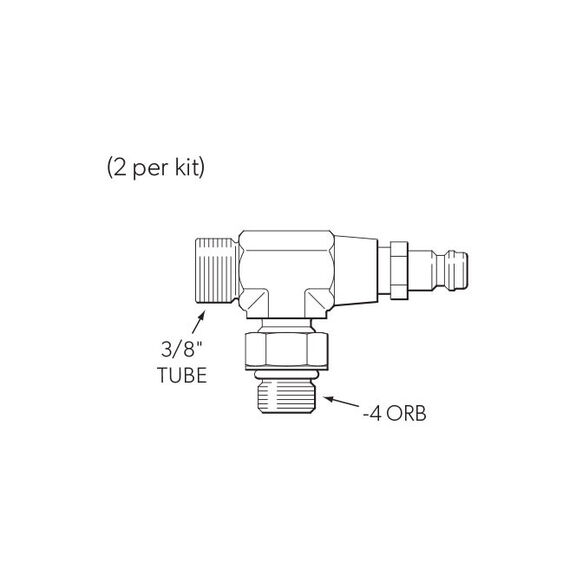

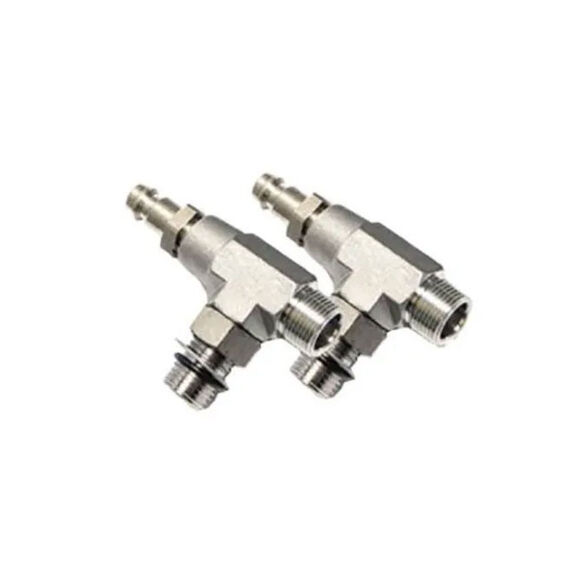

The Dometic HF4203 is a purpose-built hydraulic steering maintenance kit designed for BayStar outboard cylinders identified by a "-3" suffix in their part number. Each kit contains two adjustable stainless steel O-ring seal (#4 ORB) bleed tee fittings that thread into the cylinder or helm via positionable O-ring hose ports. Because the fittings can be freely oriented in any direction, tube routing is greatly simplified and there is no risk of breaking fittings while achieving the desired position. Thread sealant is not required, reducing installation time and eliminating one common source of leaks.

Proper hydraulic steering system bleeding is critical to safe boat operation. Trapped air in the system leads to spongy steering feel, loss of responsiveness, and inconsistent helm behavior. The HF4203 makes this maintenance task straightforward, whether during a routine service interval, a new system installation, or a cylinder seal replacement. The corrosion-resistant stainless steel construction ensures long-term durability in the harsh marine environment.

Important compatibility note: these fittings use #4 ORB threads and are designed exclusively for BayStar cylinders and helms ending in "-3" or "-4". They are not interchangeable with SeaStar systems, which use #3 ORB fittings. Always match the fitting to the correct BayStar part number suffix for proper fitment.

Key Features

• Two corrosion-resistant stainless steel #4 ORB bleed tee fittings per kit
• Designed for 1998 and newer BayStar -3 and -4 cylinders and helms
• Compatible cylinder models: HC4645-3, HC4647-3, HC4648-3, HC4658-3
• Positionable fittings — orientable in any direction to accommodate tube routing
• No thread sealant required — reduces installation time and leak risk
• Facilitates efficient air purging to prevent spongy or inconsistent steering
• Not interchangeable with SeaStar (#3 ORB) fittings
• Marine-grade construction for long-term reliability
• 2-year limited warranty from Dometic
