Similar to the CoolMatic Series 50 Compresser/Condensers, but designed for larger boxes and use in warmer waters. The Danfoss BD35F is tuned for higher efficiency and is available in three sizes to match your installation needs.

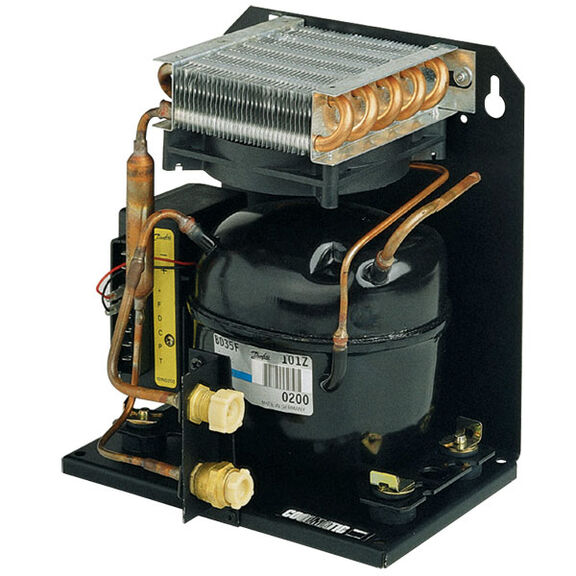

CU-86 CoolMatic Series 80 Compresser/Condenser
- Dimensions: 9"H x 8-5/8"W x 7"D
- Capacity: 8.8 cu.ft. normal cooling, 2.5 cu. ft. deep freezing
- Features: Danfoss BD35F compressor. Low-voltage protection and cutoff. Brushless DC fan
- Voltage Compatibility: 12/24V DC Draw 3.75-5A @ 12V DC
- Plumbing Connections: Self-sealing valve couplings
- Electrical Connections: 6 amp 12V or 24V. Wire needs to be sized for length of run.
- Warranty: One year
Three evaporator styles to suit your available space:
- VD-04 L-Evaporator, 10"H x 14-13/16"W x 3-7/8"D (Model 2005924)
- VD-05 Plate-Evaporator, 13-3/4"H x 14-13/16"W x 1"D (Model 2005981)
- VD-08 Angle-Evaporator, 10-5/8"H x 17-3/4"W x 13-3/8"D (Model 2006096)
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
3.75-5 Amps at 12 Volts DC
Best Use
Larger Boxes
,
Designed Warmer Waters
Capacity
Up to 8.8 Cubic Feet Refrigeration 2.5 Cubic Feet Deep Freezing
Condenser Cooling
Air
Dimensions
8 5/8" Width x 9" Height x 7" Depth
Family
CoolMatic Series 80
Plumbing Connections
Self-Sealing Valve Couplings
Refrigeration Component
Compressor
Warranty
One Year
