DLx1900FC Pulling Winch, Full Cover, 20' Strap

DUTTON-LAINSON DLx2600FC Pulling Winch, Full Cover, 25' Strap

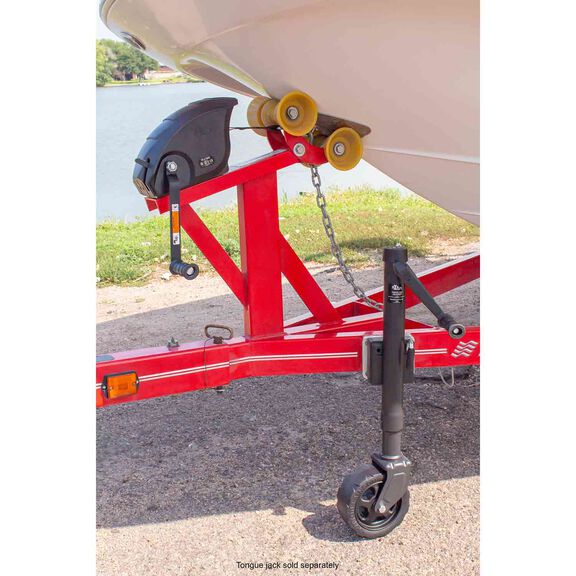

Dutton-Lainson Company pulling winches are best suited for boat trailer and other horizontal pulling applications which require the freewheeling features of ratchet type winches. Features include:

Laminated, high carbon steel gears for longer life
All gears in models DLx1200 through DL3500B are heat treated for increased strength
Permanently lubricated bearings on drive shafts are maintenance-free
Heavy duty steel handles with ergonomic molded grips
Drive shaft gears are copper brazed for durability
Rigid, welded reel construction for added strength
Load matched gear ratios for easier cranking
All plated parts are zinc plated TUFFPLATE® finish
Slotted mounting holes for easy installation
All models except DL400 have heavy gauge embossed and reinforced steel bases for extra strength
Ratcheting handle is available for models DL1602A, DL1802A, and DLx1900 when cranking space is limited
Winches freewheel when the ratchet pawl is disengaged
Available in powder coated copper bronze or zinc plated TUFFPLATE® finish
D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.

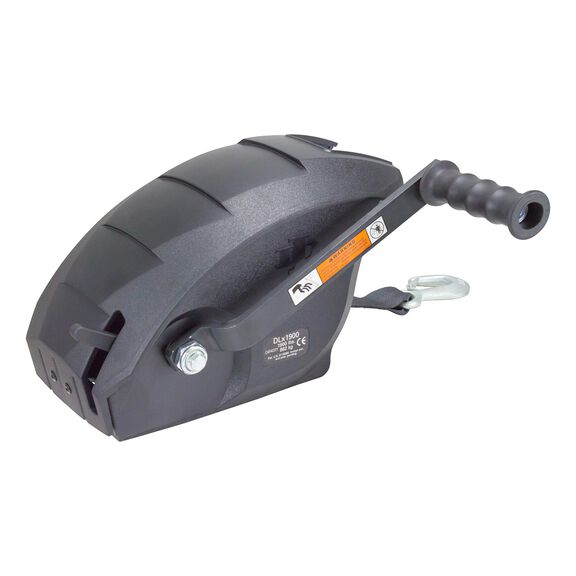

Dutton-Lainson® hand/manual/pulling/ratchet winch for horizontal pulling applications
1,900 lb. capacity
9-1/2" offset handle with ergonomic handle grip
Freewheel operation for easy line removal
Powder coated matte black finish on base, zinc plated TUFFPLATE® finish on reel and hardware
Reversible ratchet allows cranking of cable or strap onto winch drum in either direction
20' of 2" wide heavy duty polyester strap and snap hook
U.S. patents 10640343, D867713, and D867714
Made in the U.S.A.
NOTE: This winch is built for horizontal pulling applications. For vertical lifting applications, order a brake winch, a worm gear winch, or a StrongArm® electric winch without a clutch lever.
In addition to the standard D-L® pulling winch features listed above, DLx-FC pulling winches also offer this set of exclusive features.

Key Features

• Streamlined base design
• Base has charcoal gray textured powder coating over zinc plating

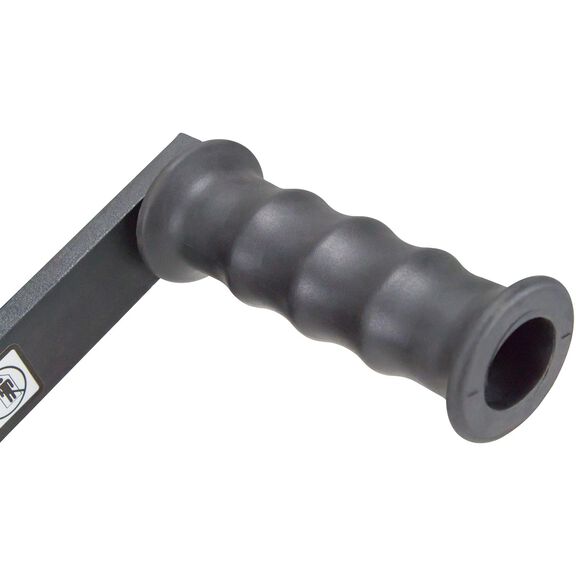

• Premium cushioned handle grip is softer and more comfortable

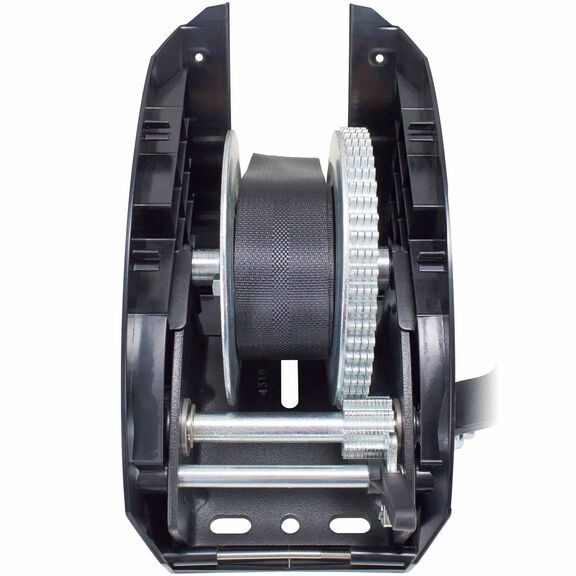

• Three-piece, high impact cover protects interior components, provides a more streamlined look, and features removable hinged top section
• Textured cover on ratchet pawl
• Unique black plated handle
