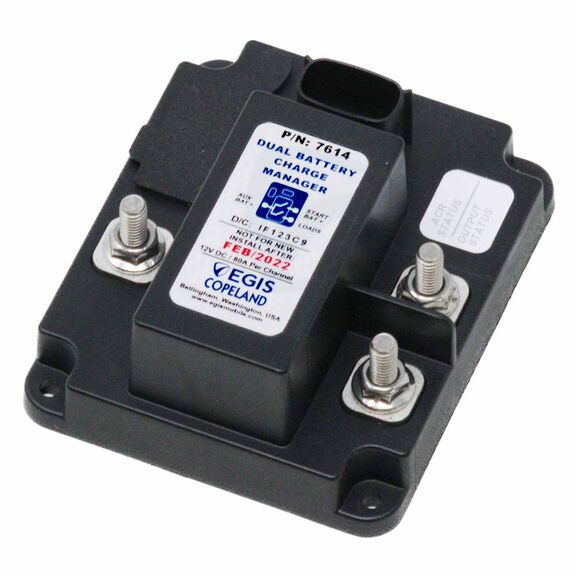

EGIS MOBILE ELECTRIC Dual Battery Charge Manager, 12V
One Product Handles Two Functions: auxiliary battery charge management and timed load shedding for add-on circuits. Prevents add-on equipment from draining batteries / maximizes and extends operational readiness. Protects sensitive on-board electronics via optional under- and over-voltage shutdown and start-event isolation.
Features:
- Remote and on-board diagnosis indicators and simplify troubleshooting
- Sealed unit, high-temperature materials allow mounting anywhere. Internal temperature overload protection
- Kill Switch control input options for service technicians, emergency OFF
- Meets Stringent OEM Standards for electrical transient self-protection
- Start Isolation input protects sensitive add-on equipment from the engine starting event
- Nominal Voltage (Vdc): 12Vdc
- Continuous Current Input: 160 Amps
- Continuous Current Per Output: 80 Amps
- Cable Size To Meet Ratings: 2 AWG
- Maximum Cable Size: 2/0 AWG
- Terminal Stud Size: M6x1.0
- Hardware Material: Stainless Steel Self-Locking
- Ingress Protection: IP65
- Max Operating Temperature: 105C (221F)
- Min Operating Temperature: -40C (-40F)
- Operating Current (mA) Standby / Open: 1.3
- Overvoltage Protection: 16.5 Vdc
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Amperage
160 Amps
ISO Approved
IP67
Mounting Hardware
4x #8 Screws Included
Type
Relay
Warranty
Four Years
